Electric Class A Cabinet Oven for Biological Sample Drying

The project required a compact, shelf-loaded drying oven for controlled biological sample processing in a university research environment. The customer needed a repeatable batch oven that supported research workflows rather than high-volume production, while still providing enough chamber space and thermal consistency for meaningful sample work.

APPLICATION REQUIREMENT

• The system had to support drying of biological samples.
• The process had to work for batch-style sample preparation and drying.
• The oven had to support a research environment where sample type, batch size, and loading arrangement varied.
• The system had to provide controlled thermal conditions suitable for repeatable laboratory and research work.

RESEARCH-USE REQUIREMENT

• The oven had to fit a university setting tied to biological, agricultural, plant, grain, seed, soil, or related sample work.
• The process had to support sample preparation steps that benefited from controlled drying before analysis, storage, weighing, or further research handling.
• The equipment had to favor flexibility and repeatability over fixed single-product production.

WORK CHAMBER / LOADING REQUIREMENT

• Required work chamber: 55 in W × 30 in D × 60 in H.
• The work area had to support shelf-loaded batches.
• The loading arrangement had to accommodate multiple sample trays, pans, or carriers within one chamber.
• Shelf adjustment had to support different sample heights and different batch layouts.

OPERATOR / ACCESS REQUIREMENT

• The oven required front loading and unloading through two swing doors.
• Operators needed straightforward control over the batch process, including fan operation, purge completion, and heat enable.
• The work area had to remain easy to load while avoiding excessive blockage of the airflow path.

QUALITY / CONTROL REQUIREMENT

• The process required repeatable drying conditions at the target operating temperature.
• The oven had to maintain ±10°F uniformity through the work area.
• The customer required temperature control suitable for documented laboratory processing.
• The controls package needed to support data-capable process monitoring.

SAFETY / ENVIRONMENTAL REQUIREMENT

• The oven had to be configured as an NFPA 86 Class A unit with a powered exhauster.
• The process required powered exhaust and purge sequencing before heat could be enabled.
• The actual drying load included no VOCs.
• The Class A solvent-capacity rating was 0.42 gal/batch o-xylene [rated capacity only; the actual process had no VOC load and used the exhaust for moisture removal].
• Safe operation required airflow proving for both exhaust and recirculation.

SITE / UTILITY REQUIREMENT

• Required electrical service: 208V / 3PH / 60Hz.
• Design elevation basis: less than 1,000 ft.

The project required a controlled moderate-temperature drying process based on electric resistance heat, horizontal forced convection, Class A ventilation, and work-area temperature monitoring.

TEMPERATURE REQUIREMENT

• Operating temperature basis: 284°F / 140°C.
• Maximum temperature basis: 350°F / 177°C.
• Required work-zone uniformity: ±10°F / ±5.6°C.

DRYING-PROCESS REQUIREMENT

• The process required controlled drying of biological samples.
• The thermal environment had to remove moisture in a repeatable way without localized overheating.
• The process depended on stable convective heating rather than direct radiant exposure.

AIRFLOW / HEAT-TRANSFER REQUIREMENT

• Airflow direction basis: full horizontal airflow.
• The process required forced-convection airflow across the shelf-loaded work chamber.
• Chamber air velocity was approximately 200 FPM, which provided the heat-transfer rate needed for controlled drying through the load zone.
• Product arrangement had to allow air to move across the chamber without excessive restriction.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat basis: 24 kW total.
• Heating arrangement basis: two 12 kW heater banks.
• The process required staged heater-bank operation through the temperature-control system.

VENTILATION REQUIREMENT

• The process required Class A exhaust and purge sequencing.
• Powered exhaust basis: 225 CFM.
• The actual drying load included no VOCs, and the powered exhaust served as the moisture-removal path.
• Rated Class A solvent capacity: 0.42 gal/batch o-xylene [rated capacity only; the actual process had no VOC load].
• Ventilation had to be established and proven before heat could be enabled.

CONTROL / SEQUENCING REQUIREMENT

• The operating sequence required the oven to:
• Start the exhaust fan.
• Start the recirculation fan.
• Complete the purge cycle.
• Enable the heater banks.
• Heat and operate at the required setpoint.
• Minimum purge-time basis: 2 minutes.
• When enabled, the batch timer started after the oven reached temperature.

COOLDOWN REQUIREMENT

• Fan operation had to continue during cooldown.
• Fans were not shut down while oven temperature remained above 250°F.
• The controls package included automatic fan shutdown and controller reset after the oven temperature fell below 150°F.

To satisfy those requirements, Precision Quincy configured the project as a 40D-350 electric Class A cabinet oven with horizontal airflow, powered exhaust, flexible shelving, and interlocked controls suited for laboratory biological-sample drying.

OVERALL CONCEPT

• One electric Class A cabinet oven.
• Compact front-loading batch configuration.
• Shelf-loaded work chamber sized for flexible laboratory and research batches.
• Full horizontal airflow across the work area.

HEATING ARCHITECTURE

• Heat source: electric resistance heat.
• Total installed heat: 24 kW.
• Heating was split into two 12 kW heater banks.
• Each heater bank used twelve 1000 W elements.
• Heater-bank power was controlled through solid-state relays with backup contactors.

AIRFLOW ARCHITECTURE

• Airflow pattern: full horizontal airflow.
• Recirculation fan assembly: 12.1875 in × 4 in RB fan assembly.
• Recirculation performance: 2,496 CFM at 2 in. W.c..
• Recirculation fan motor: 1.5 HP.
• Adjustable duct openings supported airflow setup across the chamber.

EXHAUST / VENTILATION ARCHITECTURE

• Exhaust fan: PQ1 exhauster.
• Exhaust performance: 225 CFM.
• Exhaust fan motor: 0.75 HP.
• A fresh-air damper and powered exhaust path supported the Class A configuration, with the exhauster serving as the moisture-removal path for drying.
• Exhaust and recirculation airflow switches proved safe airflow conditions before heater enable.
• A timed purge cycle was integrated into the heat-enable logic.

CHAMBER / SHELL ARCHITECTURE

• Internal work chamber: 55 in W × 30 in D × 60 in H.
• Wall system: 2-inch insulated walls.
• Insulation: 2 inches of 6 lb mineral wool.
• Interior material: unpainted aluminized steel.
• Exterior finish: PQ Blue.
• Control enclosure finish: ANSI 61 gray.
• Approximate oven weight: 1,450 lb.

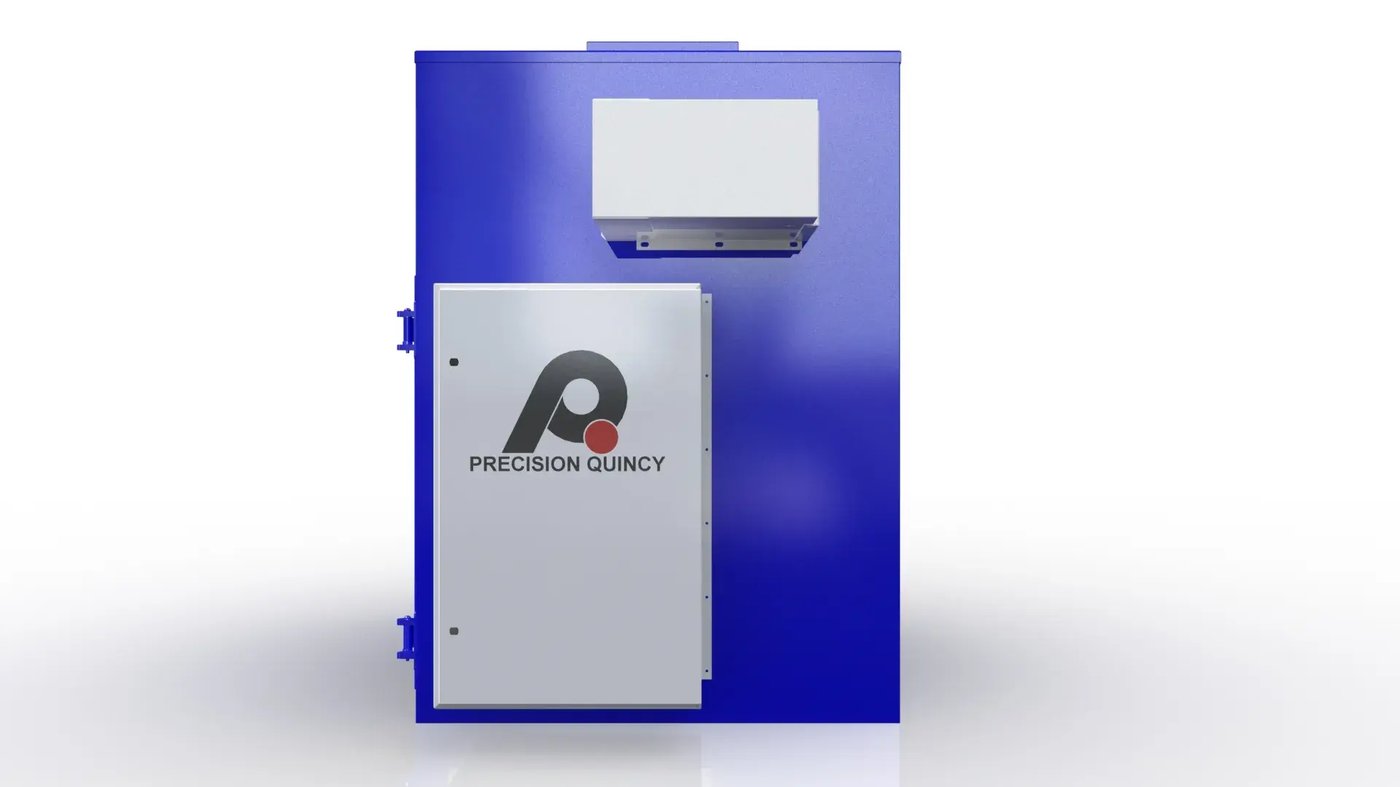

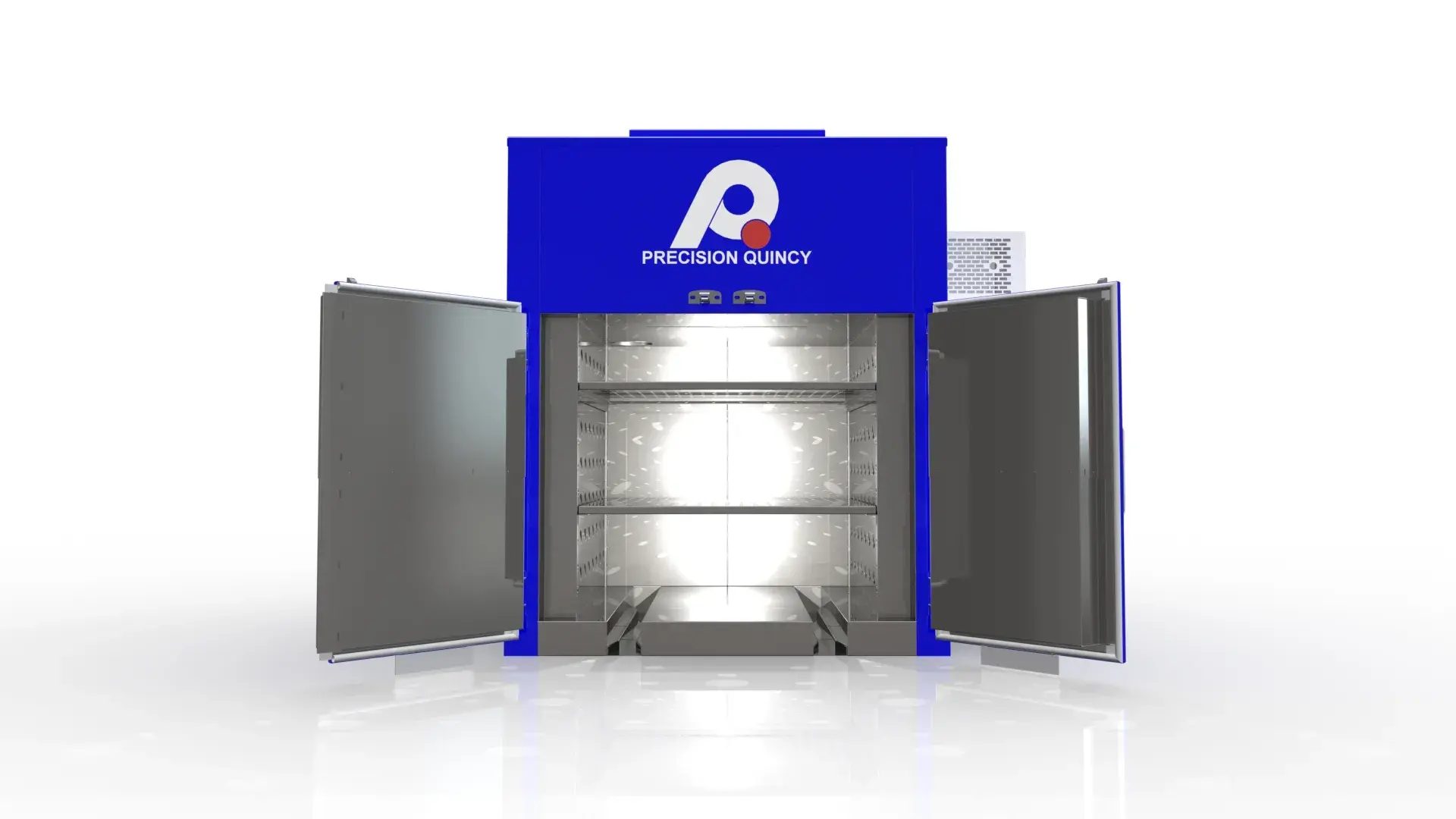

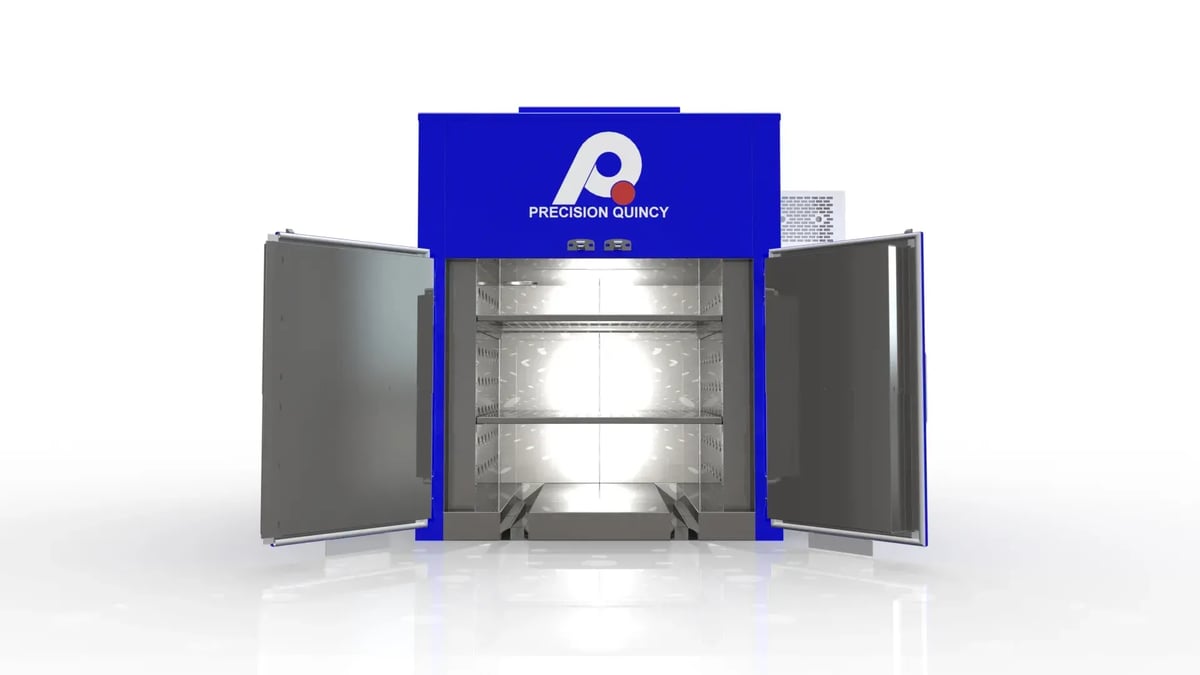

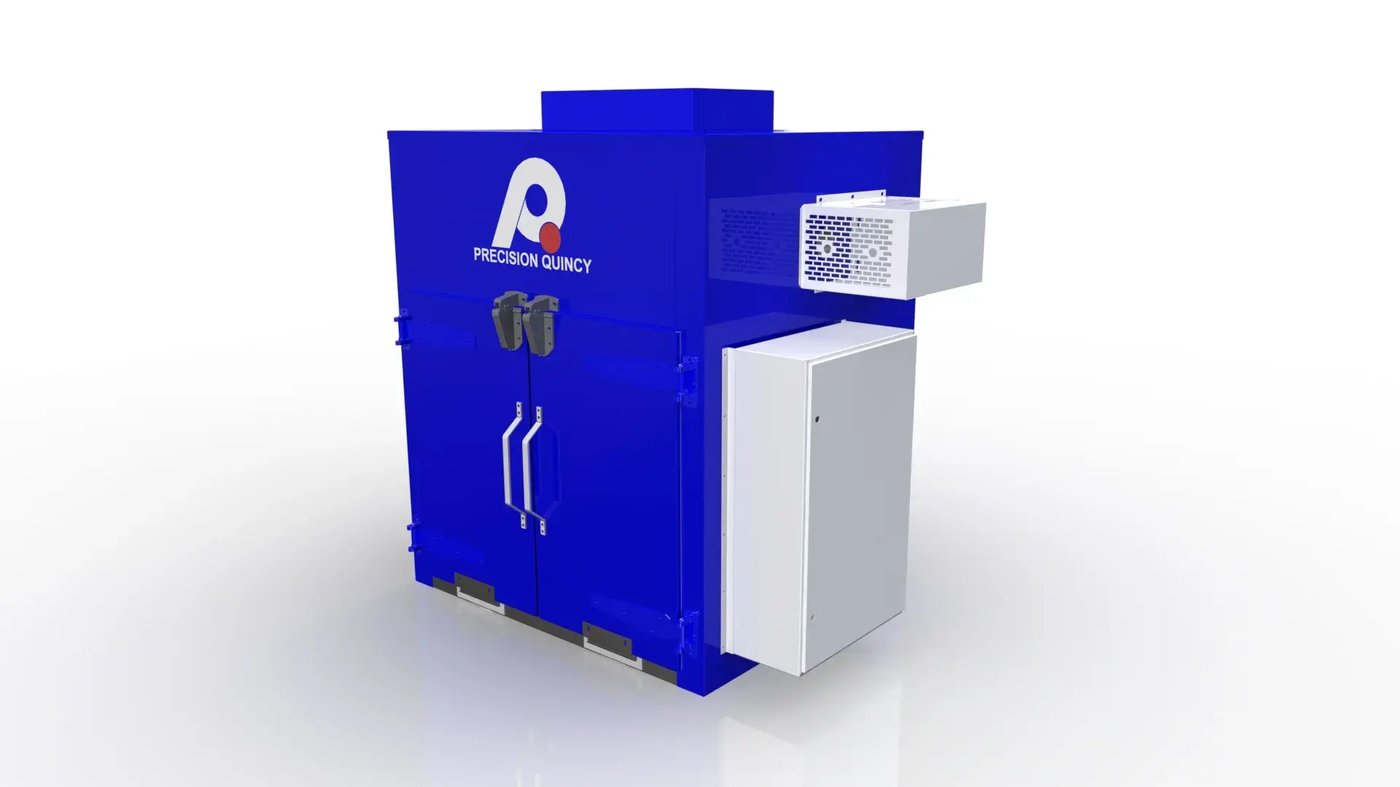

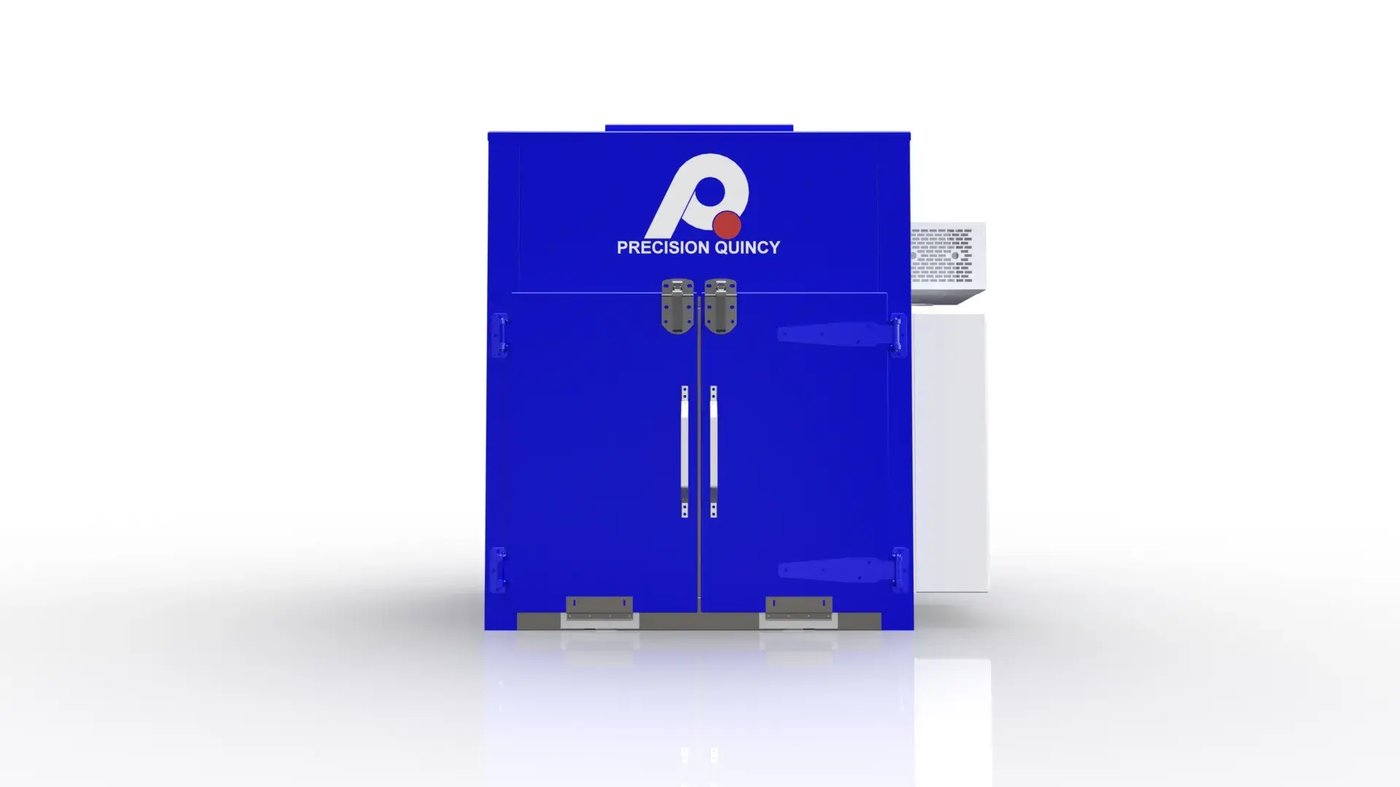

DOOR / LOADING ARCHITECTURE

• Door style: two swing doors.
• Shelf package: two 100 lb shelves.
• Shelf slotting: 3-inch centers.
• The chamber layout supported flexible shelf elevations for changing batch formats.

CONTROLS ARCHITECTURE

• Primary temperature controller: SSI 804 with data acquisition.
• Excess-temperature controller: Gefran 650L.
• Control enclosure: NEMA 1 UL508A open industrial control panel.
• Enclosure size: 42 in × 36 in × 12 in.
• Separate operator controls were provided for the exhaust fan, recirculation fan, and each heater bank.
• The enclosure included purge complete, fan on, and heater-bank on indication.
• An enclosure cooling fan supported the control package.

SAFETY ARCHITECTURE

• Applicable standards basis: NFPA 79, NFPA 86, UL508A.
• Safety logic included:
• Exhaust airflow proving
• Recirculation airflow proving
• Timed purge before heat enable
• Excess-temperature shutdown
• Heat shutdown if required safe operating conditions were not met
• Controlled cooldown before fan shutdown
