Electric Class A Cabinet Oven for Blade Component Curing

The project required a batch curing oven sized for blade-component processing in a power-generation equipment environment. Based on the documented product listing of blades and the broader customer context, the project likely supported blade-related part processing associated with aeroderivative turbine manufacturing, repair, or lifecycle-care work.

APPLICATION REQUIREMENT

• The process had to support batch curing of blade components.
• The oven had to accommodate blade parts and fixtures in a way that allowed repeatable heating without excessive airflow restriction.
• The customer needed a controlled batch process suitable for regular production use rather than informal heat-up work.

WORK CHAMBER / LOADING REQUIREMENT

• Required work chamber: 48 in W × 48 in D × 38 in H.
• The oven had to allow front loading and unloading through two swing doors.
• Product and fixture positioning had to be arranged to minimize restrictions in airflow passage through the unit during use.

OPERATOR / MAINTENANCE REQUIREMENT

• Production, maintenance, and applications personnel needed a system that could be programmed, loaded, and maintained without an extended learning curve.
• Startup expectations included training on controls programming, proper loading, and maintenance requirements.

QUALITY REQUIREMENT

• The process had to operate within the required temperature specification and support consistent curing results.
• The control package had to support programmable thermal cycles and repeatable operation during production integration.

SAFETY / ENVIRONMENTAL REQUIREMENT

• The oven had to be configured as a Class A oven.
• The documented maximum volatile load basis was 0.17 gal/batch o-xylene.
• The project required a powered exhaust system, purge logic, and installation provisions compatible with NFPA 86 / NFPA 68 exhaust handling requirements.

SITE / UTILITY REQUIREMENT

• Required electrical service: 460V / 3PH / 60Hz.
• The floor at point of use had to be non-combustible, rated for oven temperature, and flat to +/- 0.25 in.
• Utility hookups, permits, and local code compliance remained part of the site requirement.

The project required a moderate-to-high-temperature forced-convection curing process with programmable profile capability and Class A ventilation.

TEMPERATURE REQUIREMENT

• Operating temperature basis: 150°F to 550°F.
• Maximum temperature basis: 550°F.
• Required work-zone uniformity: ±10°F.

AIRFLOW / HEAT-TRANSFER REQUIREMENT

• Airflow direction basis: full horizontal airflow.
• The process required repeatable forced convection across the work chamber.
• Estimated chamber air velocity basis: approximately 118 FPM.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat basis: 36 kW total.
• Heating arrangement basis: 24 elements at 1.5 kW each.

VENTILATION REQUIREMENT

• The process required Class A exhaust and purge sequencing.
• Powered exhaust basis: 225 CFM.
• Maximum volatile load basis: 0.17 gal/batch o-xylene.
• Minimum purge time basis: 4 minutes before heat enable.

CONTROL / SEQUENCING REQUIREMENT

• Primary process-control basis: ramp/soak temperature control.
• Documented operating sequence required:
• Start exhaust fan
• Start recirculation fan
• Complete timed purge
• Enable heat
• Run at setpoint or programmed profile
• Safe operating conditions had to be proven before heat could remain energized.

COOLDOWN REQUIREMENT

• The system supported a programmed shutdown profile for fan control.
• Fans had to remain on until the oven cooled to below 250°F.

THERMAL INSTRUMENTATION BASIS

• Work-area temperature sensing used Type J thermocouple instrumentation.
• Independent excess-temperature protection monitored the work area in parallel with the primary controller.

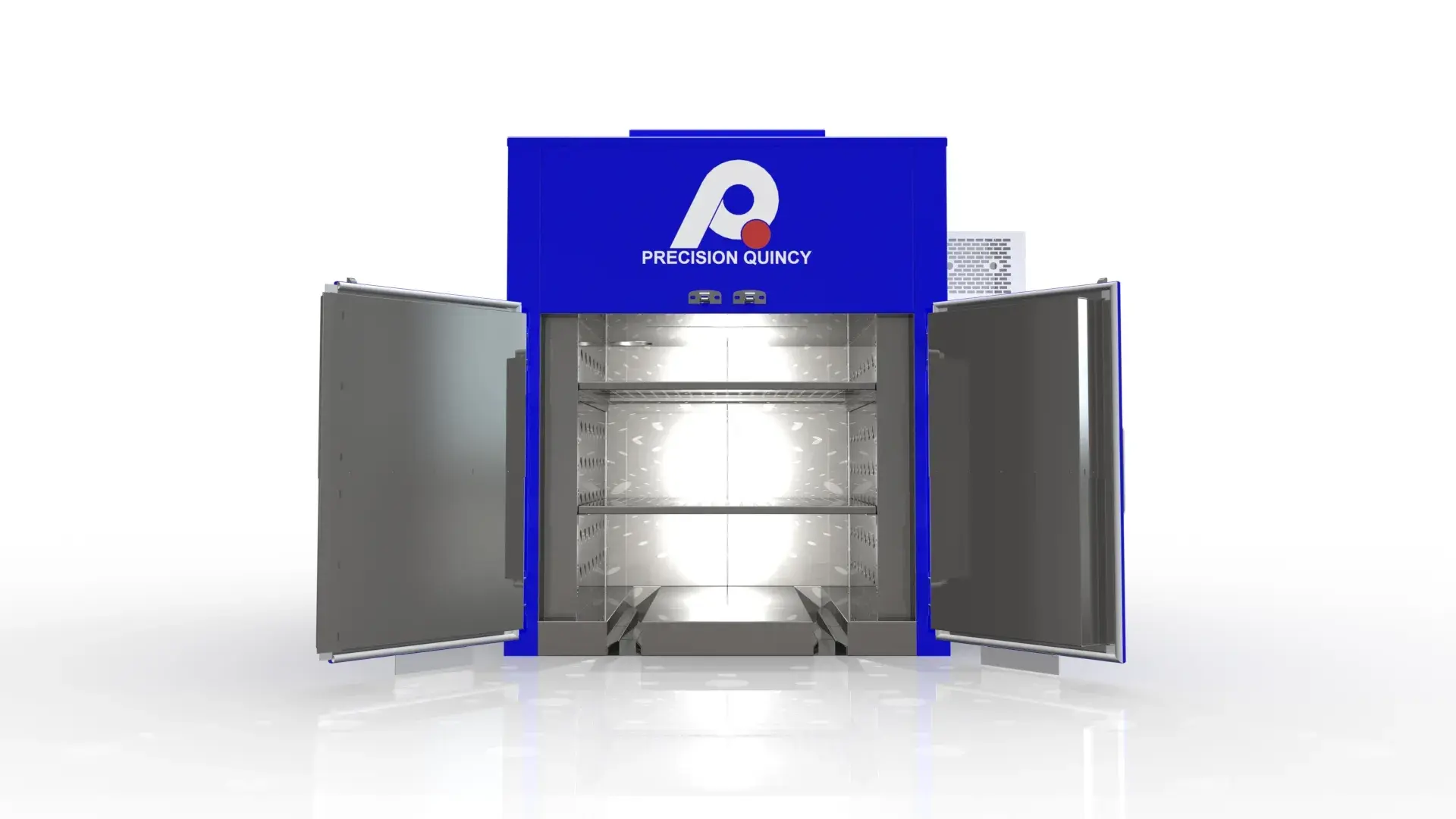

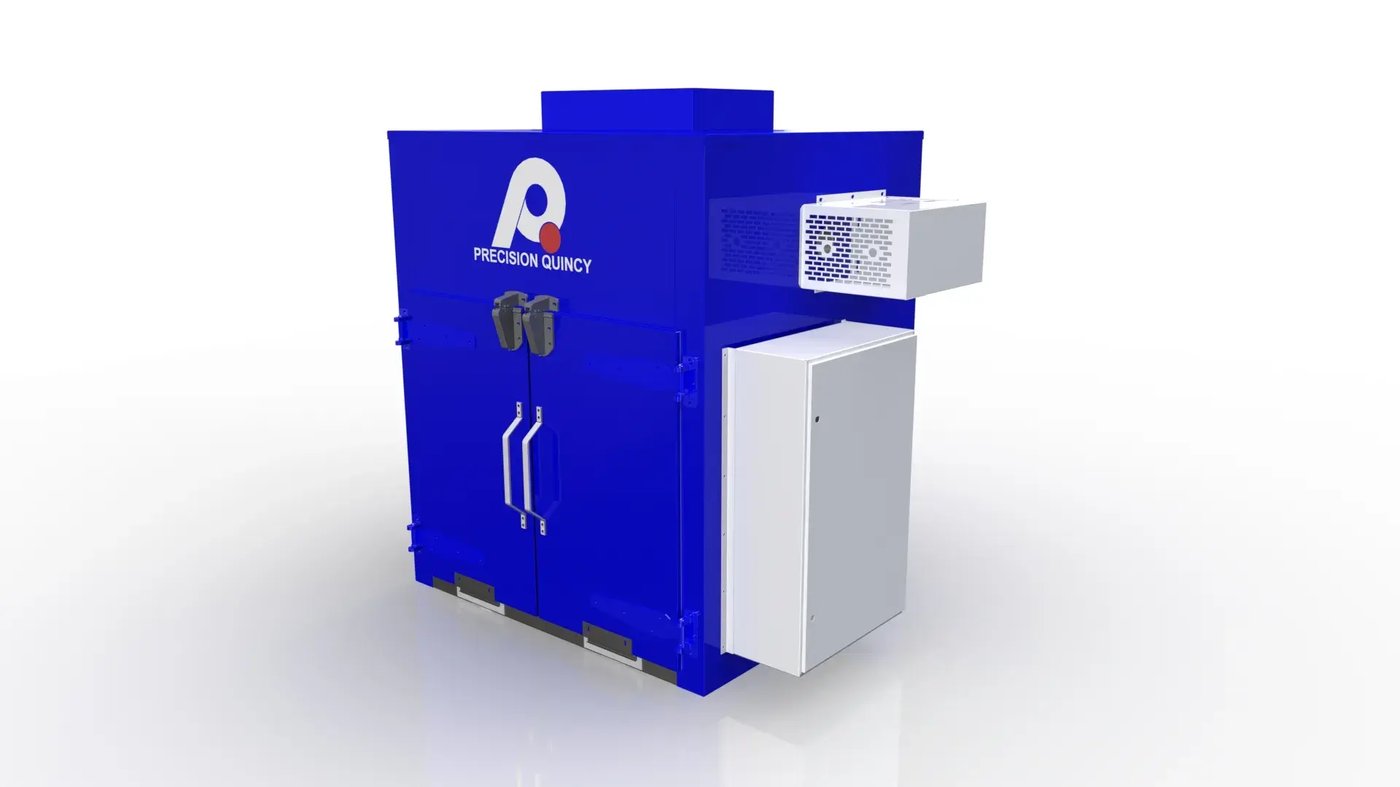

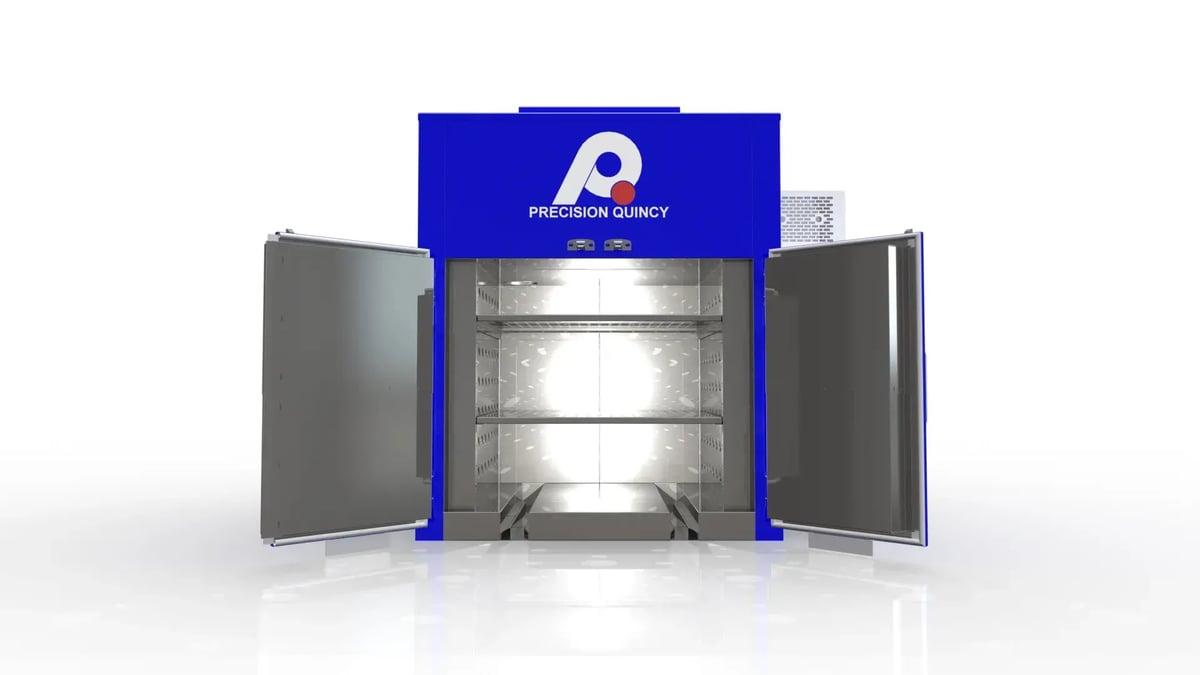

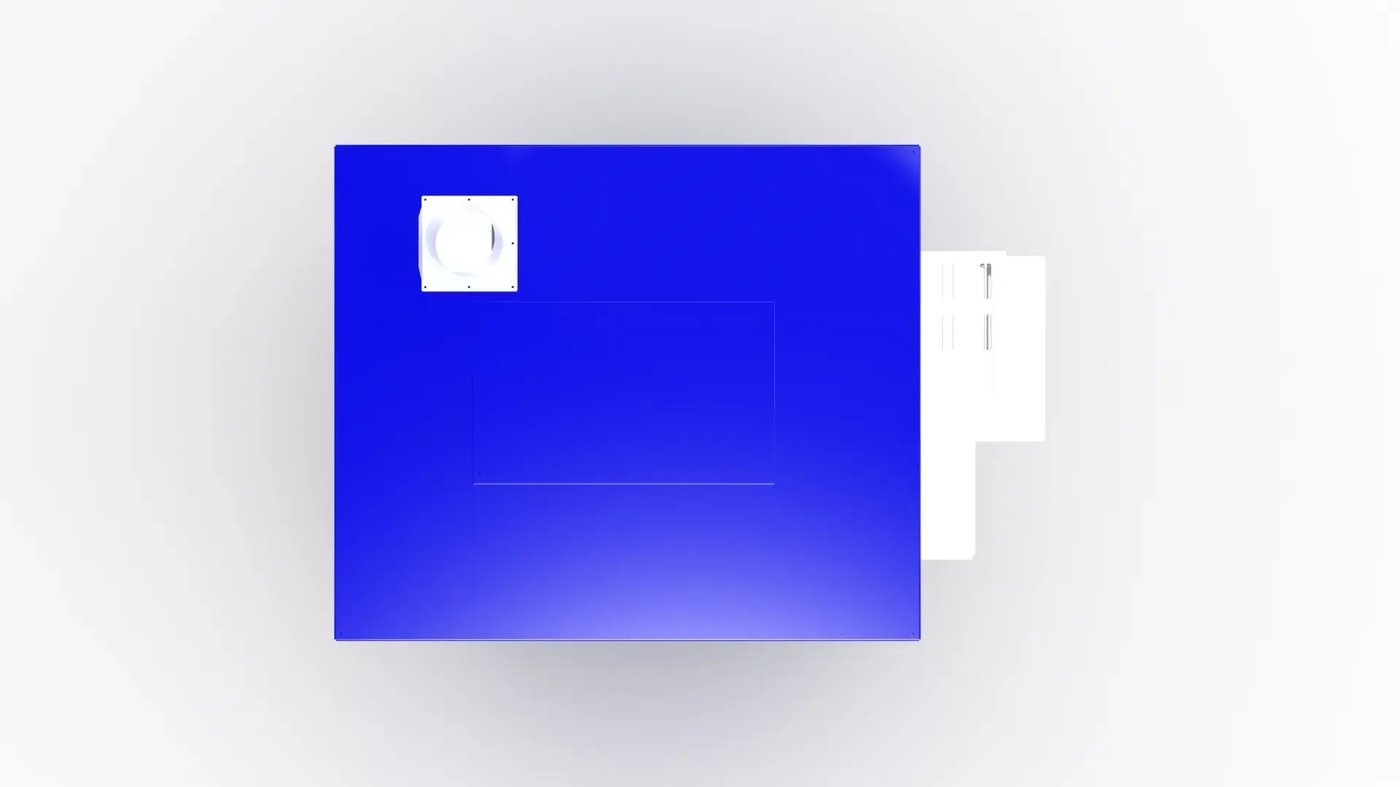

To satisfy those requirements, Precision Quincy configured the project as a 43C-550 electric Class A cabinet oven with one electric heat bank, horizontal recirculation airflow, powered exhaust, and a side-mounted control enclosure.

OVERALL CONCEPT

• One electric Class A cabinet oven.
• Front-loading batch configuration.
• 43 Series cabinet platform.

HEATING ARCHITECTURE

• Heat source: electric resistance heat.
• Total installed heat: 36 kW.
• Heating arrangement: one heat bank.
• Element basis: 24 × 1,500 W elements.
• Heat output was controlled through solid-state relays with a backup contactor.

AIRFLOW ARCHITECTURE

• Airflow pattern: full horizontal airflow.
• Recirculation system basis:
• 9.94 in × 6 in FC fan wheel
• 1,500 CFM at 2 in. W.c.
• 1.5 HP motor
• The oven floor used guide tracks integrated into the insulated floor assembly.

EXHAUST / VENTILATION ARCHITECTURE

• Exhaust system basis:
• PQ1 exhauster
• 225 CFM at 1 in. W.c.
• 0.75 HP motor
• The oven used a fresh-air damper and Class A purge logic.
• Airflow switches monitored both exhaust and recirculation airflow before heat remained enabled.

CHAMBER / SHELL ARCHITECTURE

• Internal work chamber: 48 in W × 48 in D × 38 in H.
• Wall system: 4 in thick construction with 4 in of 6 lb mineral wool.
• Interior material: unpainted aluminized steel.
• Exterior finish: Traffic Gray (RAL 7042).
• Control enclosure finish: Gray (ANSI 61).
• Approximate oven weight: 1,400 lb.

DOOR / ACCESS ARCHITECTURE

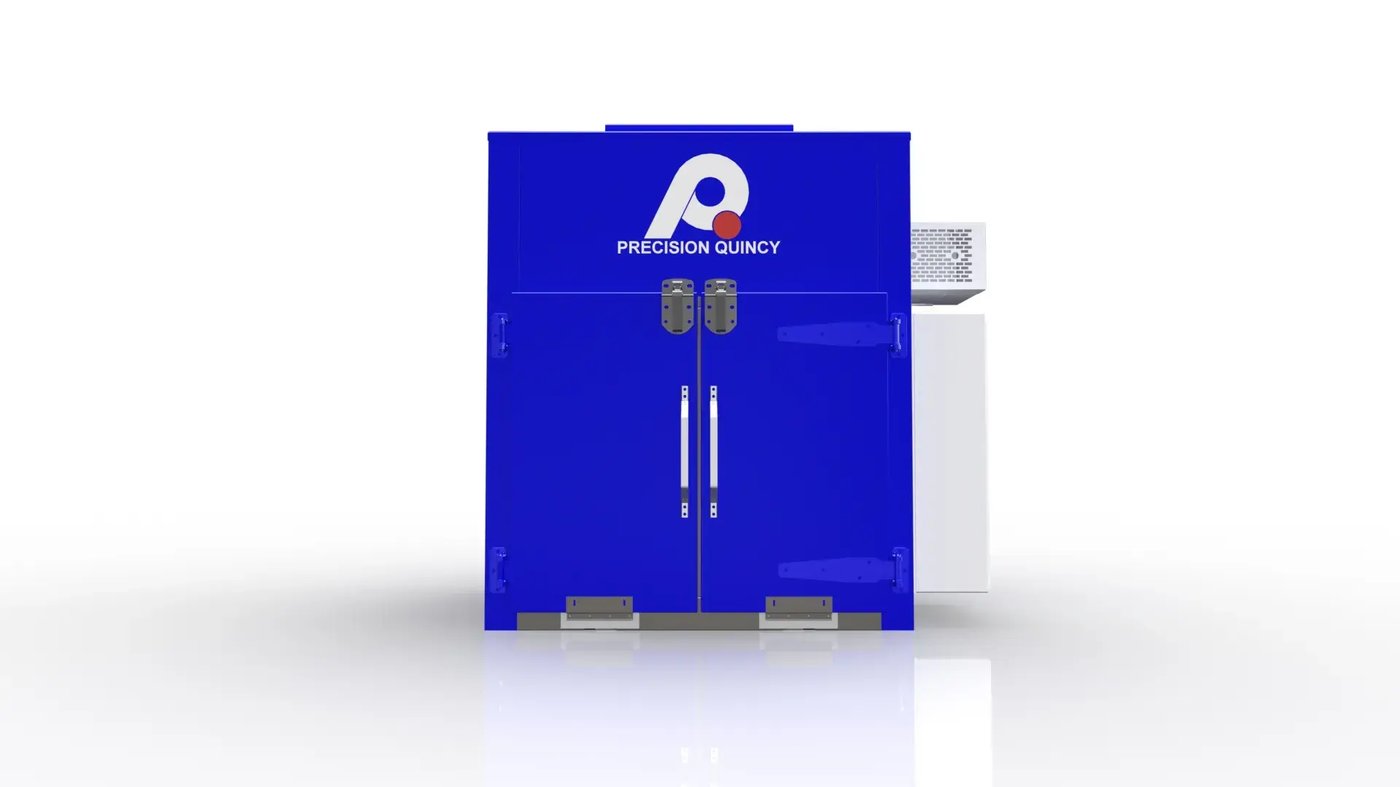

• Two swing doors provided front access to the work chamber.
• Required clearance for door swing: 35 in.
• Required clearance at control enclosure: 36 in.

CONTROLS ARCHITECTURE

• Primary temperature control: Watlow F4T ramp/soak controller.
• Excess-temperature protection: Gefran 650L.

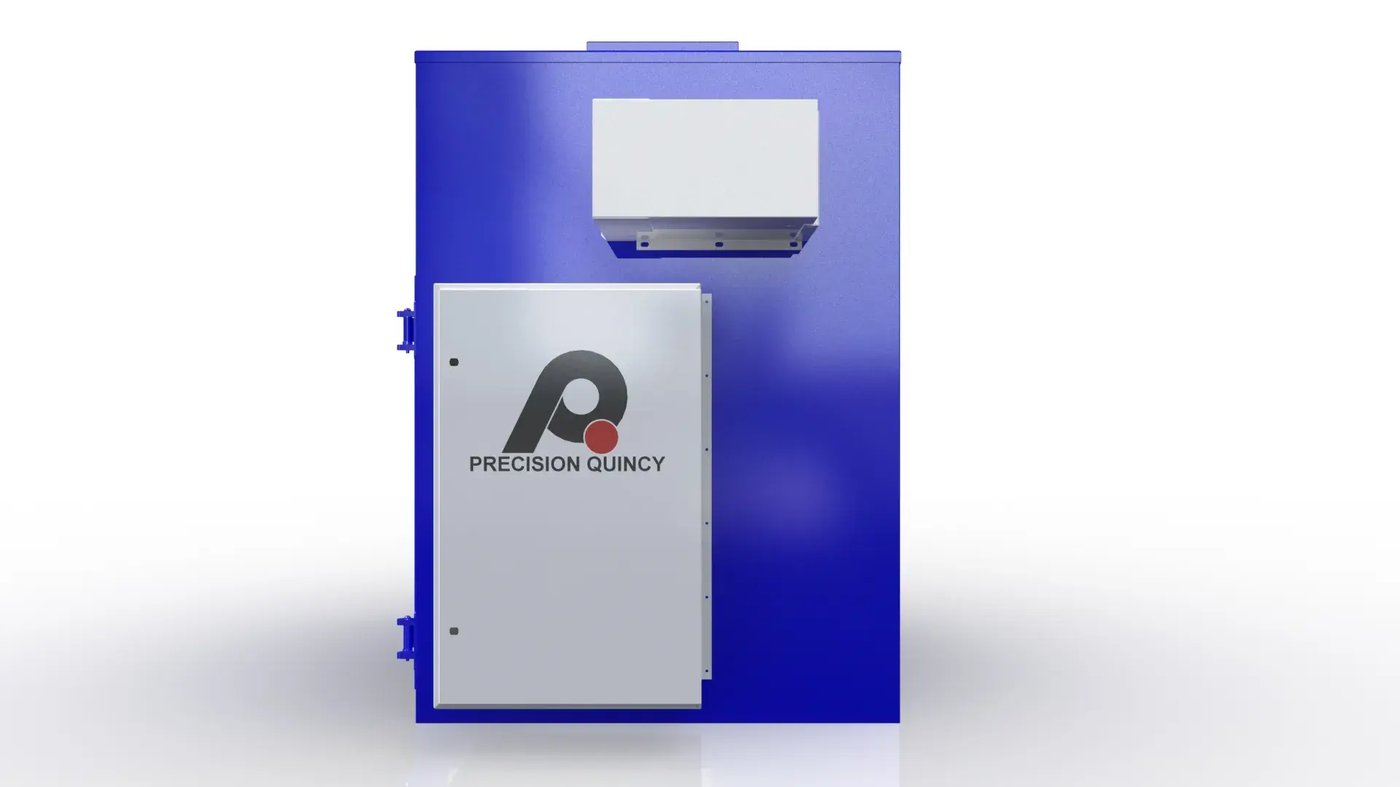

• Control enclosure: NEMA 1 UL 508A open industrial control panel.
• Enclosure size: 36 in × 30 in × 12 in.
• Panel hardware included:
• Non-fused disconnect
• 350 VA control transformer
• Solid-state relay package
• Enclosure cooling fan
• Purge complete indication
• Exhaust fan and recirculation fan controls
• Heater-bank on indication
• Panel-mount USB port

SAFETY ARCHITECTURE

• Applicable standards basis: NFPA 79, NFPA 86, UL 508A.
• Safety logic included:
• Exhaust airflow proving
• Recirculation airflow proving
• Timed purge before heat enable
• Excess-temperature shutdown
• Heat shutdown if required safe operating conditions were not met
• Cooldown protection above 250°F
