Electric Class A Cabinet Oven for Powder-Coating Cure of Steel Automotive Components

The project required a compact batch oven for the controlled thermal processing of powder-coated steel components in an automotive manufacturing environment.

APPLICATION REQUIREMENT

• The oven had to support the batch curing of coated steel parts and associated fixtures.
• The process had to fit within a cabinet-oven footprint suited for production support work rather than a larger walk-in platform.
• The equipment had to provide repeatable thermal processing for steel loads associated with automotive component manufacturing.

WORK CHAMBER AND LOADING REQUIREMENT

• Required internal work chamber: 48 in W × 30 in D × 48 in H.
• The oven had to support shelf-loaded batch processing with flexible part and fixture arrangements.
• The standard shelf package included two 100 lb capacity shelves.
• Product and fixture placement had to preserve open airflow paths through the work chamber during use.

OPERATOR AND ACCESS REQUIREMENT

• The oven had to allow front loading and unloading through two swing doors.
• The cabinet format had to support practical daily use in a production setting with straightforward operator access.
• The side-mounted controls package had to remain accessible for routine operation and maintenance.

QUALITY REQUIREMENT

• The process required repeatable cure conditions across the specified operating range.
• The oven had to maintain ±10°F work-zone uniformity for consistent thermal results.
• The system had to provide stable work-area temperature control for repeatable finishing performance.

SAFETY AND UTILITY REQUIREMENT

• The customer required an electric Class A oven configuration with powered exhaust and purge protection.
• Required site power was 460V / 3PH / 60Hz.
• The process required a control system that would prove airflow and complete purge before heat could be enabled.

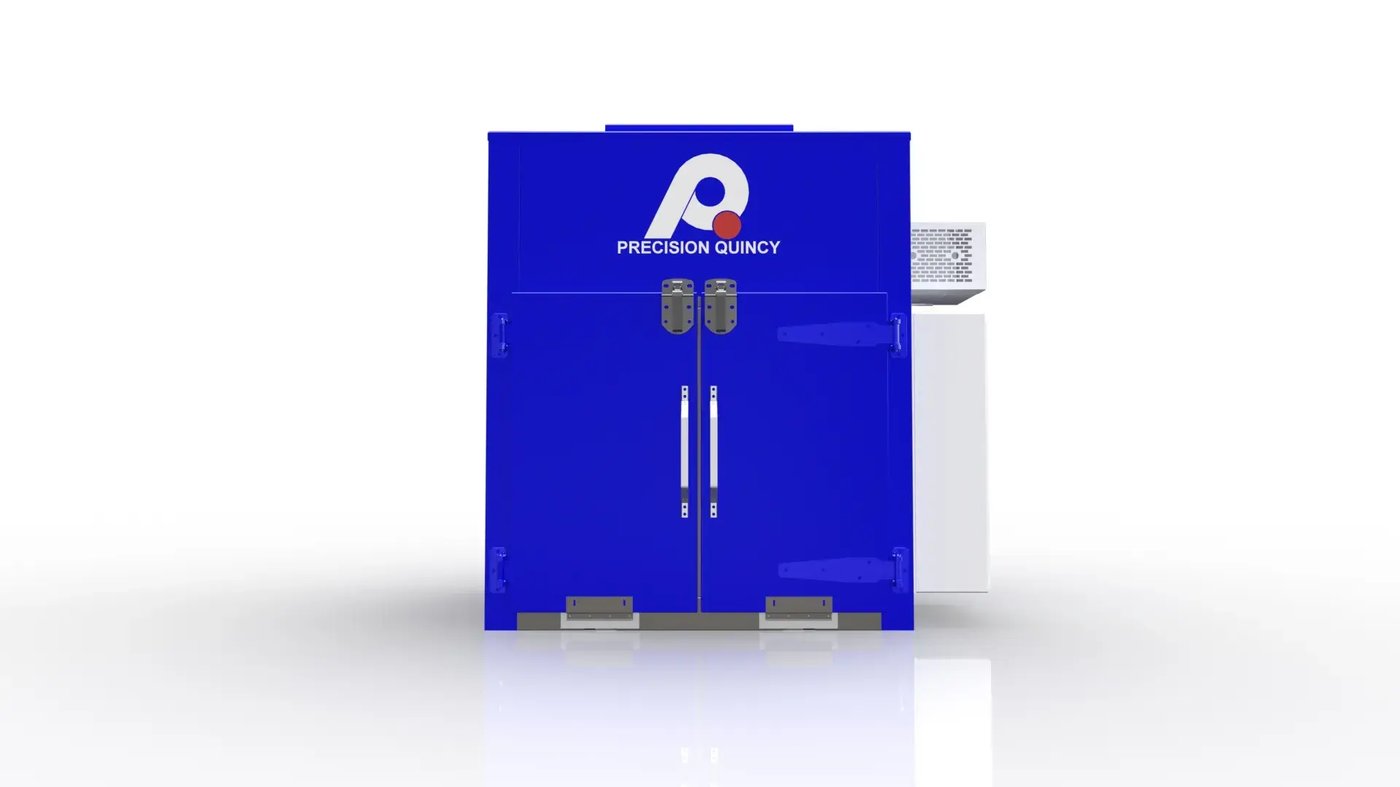

• Front elevation

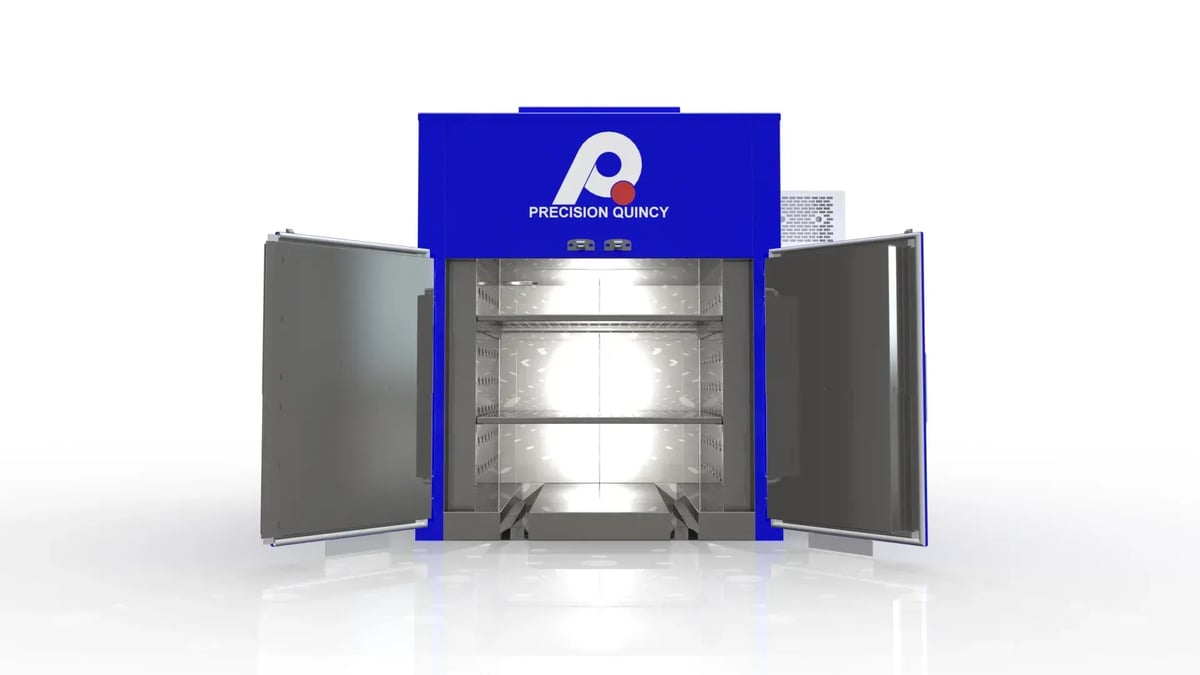

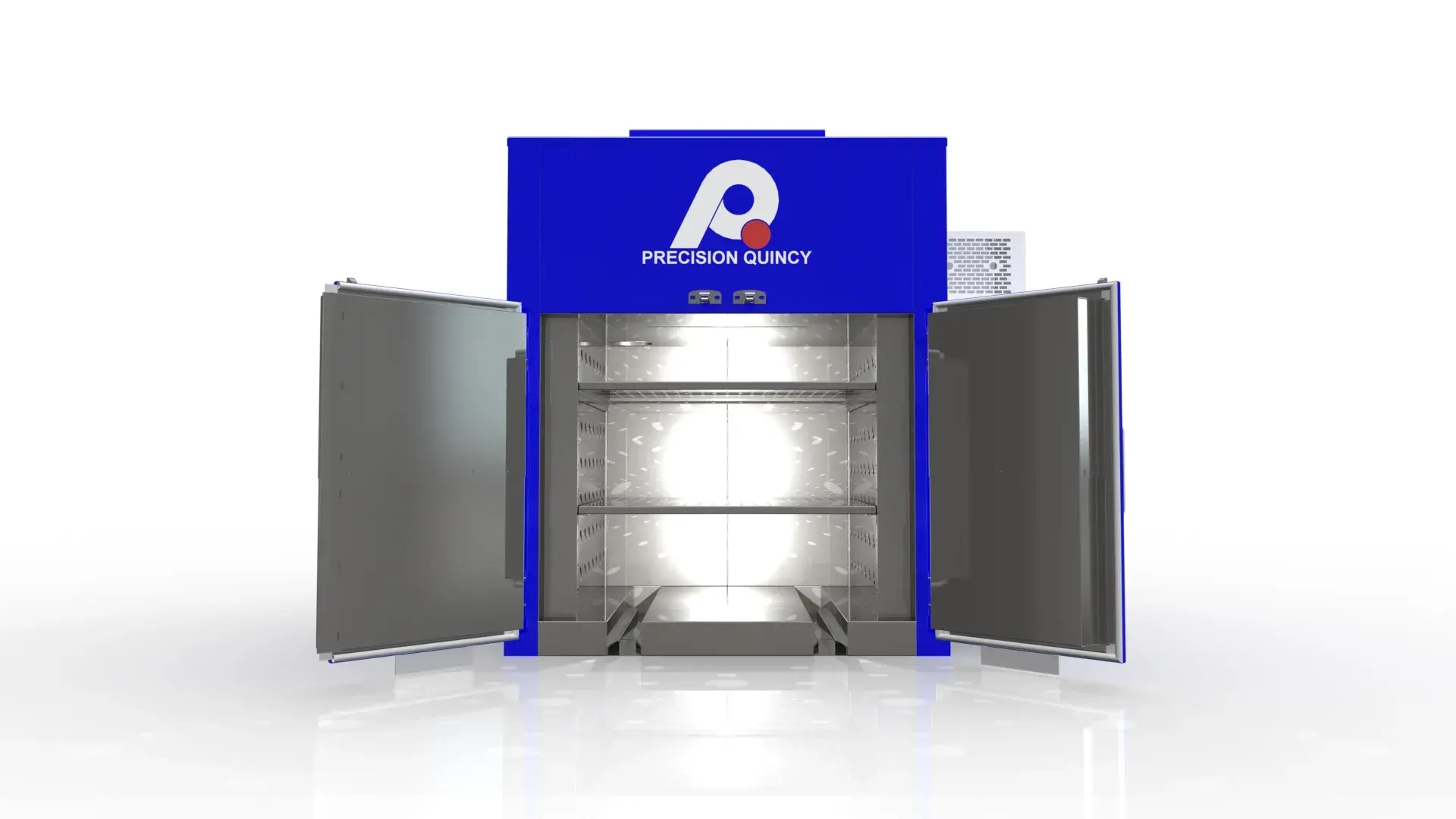

• Door-open view
• Work chamber image

The project required a controlled batch curing process based on horizontal forced convection, electric heat input, and Class A ventilation sequencing.

TEMPERATURE REQUIREMENT

• Operating temperature range: 125°C to 200°C (257°F to 392°F).
• Maximum temperature capability: 550°F (288°C).
• Required work-zone uniformity: ±10°F.

AIRFLOW AND HEAT-TRANSFER REQUIREMENT

• Airflow direction: full horizontal airflow.
• The process required forced convection across the work chamber to support even heating of shelf-loaded steel parts.
• Chamber air velocity was approximately 150 feet per minute, providing the heat-transfer rate needed for repeatable cure performance.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat: 31.5 kW.
• The thermal process required enough installed heat to bring loaded steel parts to cure temperature and hold the required operating range with controlled stability.

VENTILATION AND PURGE REQUIREMENT

• The oven required Class A exhaust and purge protection.
• Powered exhaust basis: 225 CFM.
• Minimum purge time: 3 minutes.
• Exhaust airflow and recirculation airflow both had to be proven before heat could be enabled.

THERMAL SAFETY REQUIREMENT

• The process required independent excess-temperature protection in addition to the main temperature controller.
• Heat had to shut off automatically if required safe operating conditions were not maintained.
• The oven required continued fan operation during cooldown, and the circulating air system remained in operation until the oven temperature dropped below 250°F.

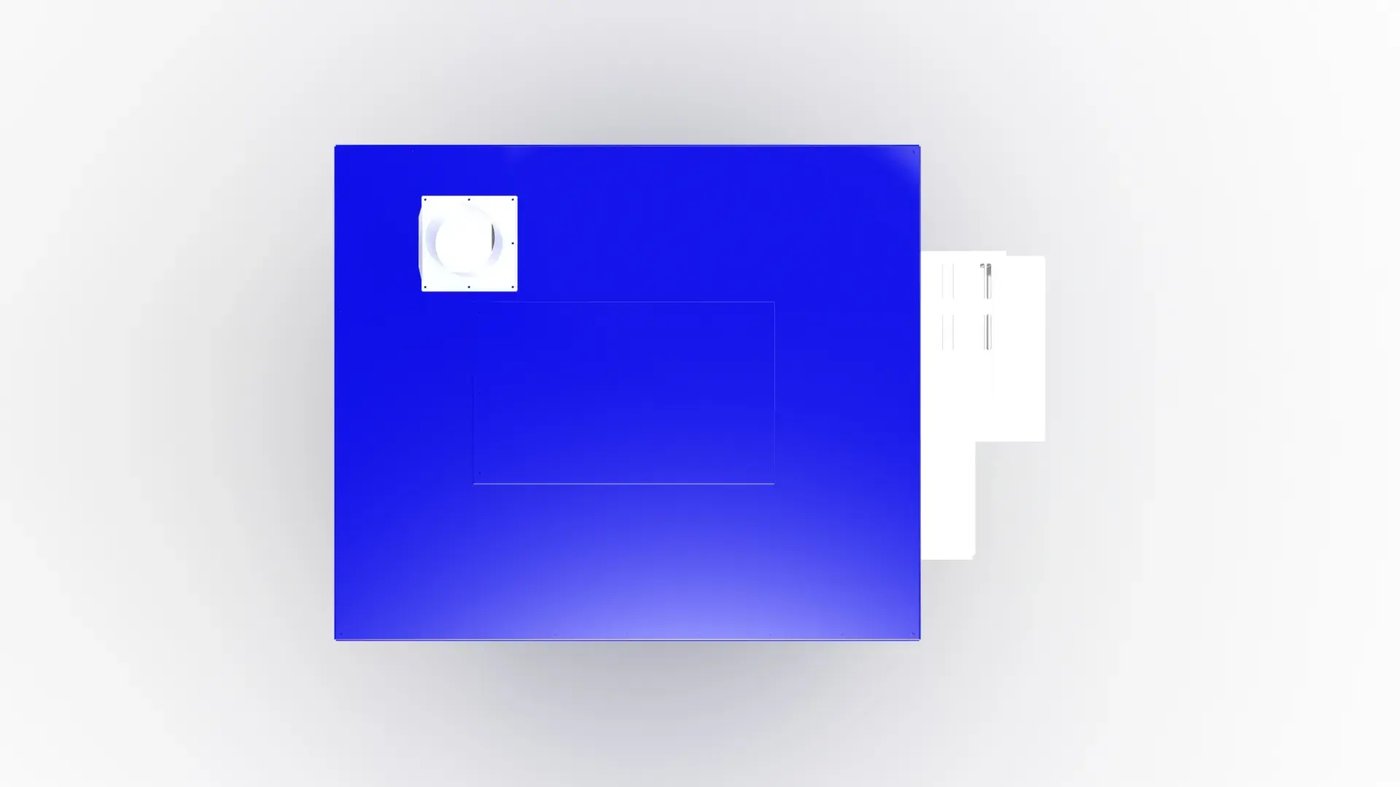

• GA airflow view
• Wiring-diagram sequence area

To satisfy those requirements, Precision Quincy configured the project as a 40B-550 electric Class A cabinet oven with horizontal airflow, powered exhaust, flexible shelf loading, and an interlocked single-enclosure controls package.

OVERALL CONCEPT

• One electric Class A cabinet oven.
• Compact front-loading batch configuration.
• Shelf-loaded work chamber sized for flexible cure batches.

HEATING ARCHITECTURE

• Heat source: electric resistance heat.
• Installed heat: 31.5 kW.
• Heating system built around twenty-one 1.5 kW heating elements.
• Heater power was switched through solid-state relay control with a backup contactor arrangement.

AIRFLOW ARCHITECTURE

• Airflow pattern: full horizontal airflow.
• Recirculation system designed to deliver 1500 CFM at 2 in. W.c.
• Final motor selection used a 1.5 HP recirculation fan motor.
• Airflow proving protected the heat system by verifying recirculation performance before heat enable.

EXHAUST AND VENTILATION ARCHITECTURE

• Class A exhaust system based on a PQ1 exhauster delivering 225 CFM at 1 in. W.c.
• Exhaust system used a 0.75 HP motor.
• Fresh-air intake and powered exhaust operated with purge timing and airflow switches as part of the oven safety sequence.

CHAMBER AND SHELL ARCHITECTURE

• Internal work chamber: 48 in W × 30 in D × 48 in H.
• Wall system: 4 in thick insulated construction.
• Insulation: 4 in of 6 lb mineral wool.
• Interior material: aluminized steel.
• Exterior finish: PQ Blue.
• Control enclosure finish: ANSI 61 gray.
• Approximate oven weight: 1,250 lb.

DOOR AND LOADING ARCHITECTURE

• Two swing doors for front access.
• Two 100 lb shelves for flexible batch loading.
• Insulated floor construction supported thermal stability and work-chamber durability.

CONTROLS ARCHITECTURE

• Main temperature controller: SSI-804.
• Excess-temperature controller: Gefran 650L.
• Control enclosure: NEMA 1 UL508A open industrial control panel.
• Control enclosure size: 42 in × 30 in × 12 in.
• Operator controls included separate fan and heat functions with visual status indication for purge complete, fan operation, and heater operation.

SAFETY ARCHITECTURE

• Applicable design basis included NFPA 79, NFPA 86, and UL508A.
• Safety logic included:
• Powered exhaust proving
• Recirculation airflow proving
• Timed purge before heat enable
• Independent excess-temperature shutdown
• Automatic heat shutdown if safe operating conditions were not met

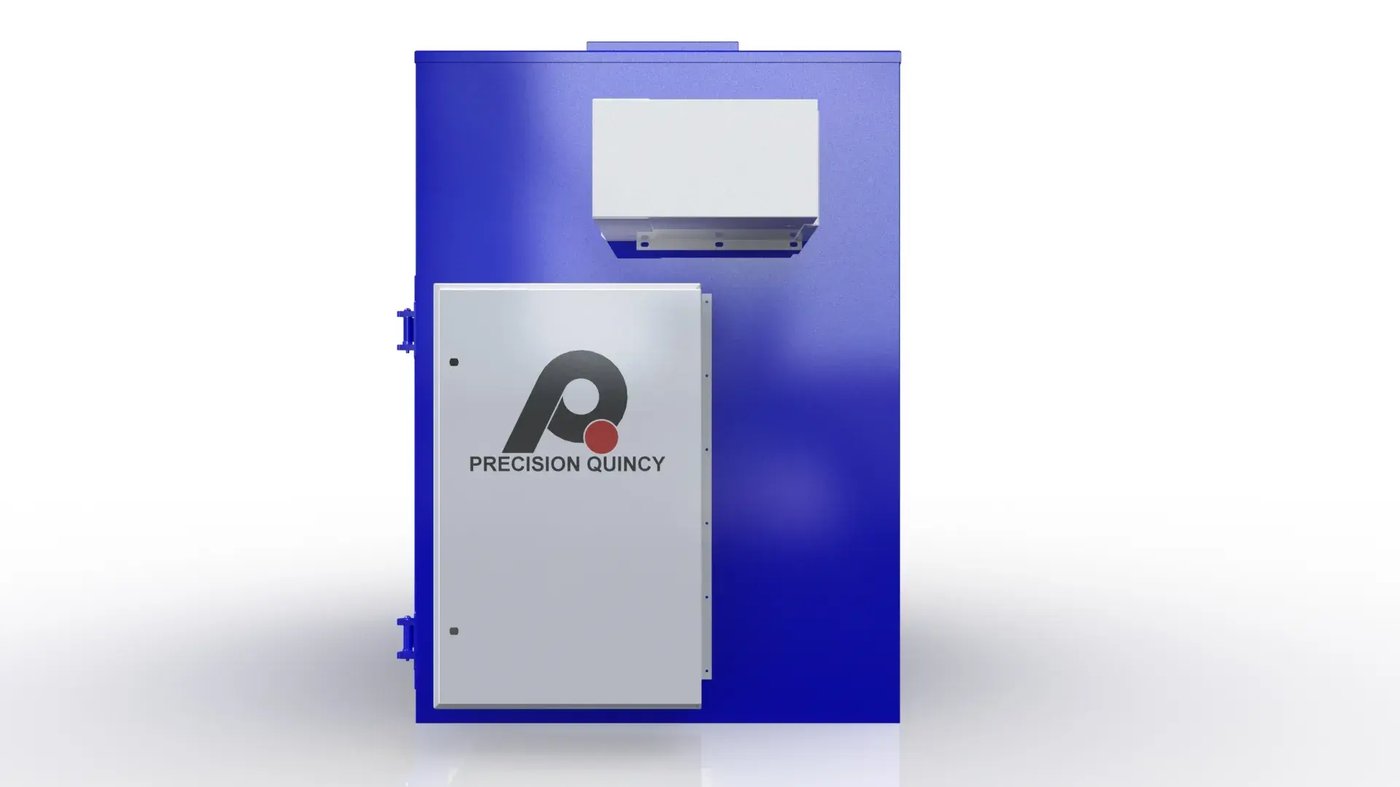

• Enclosure layout

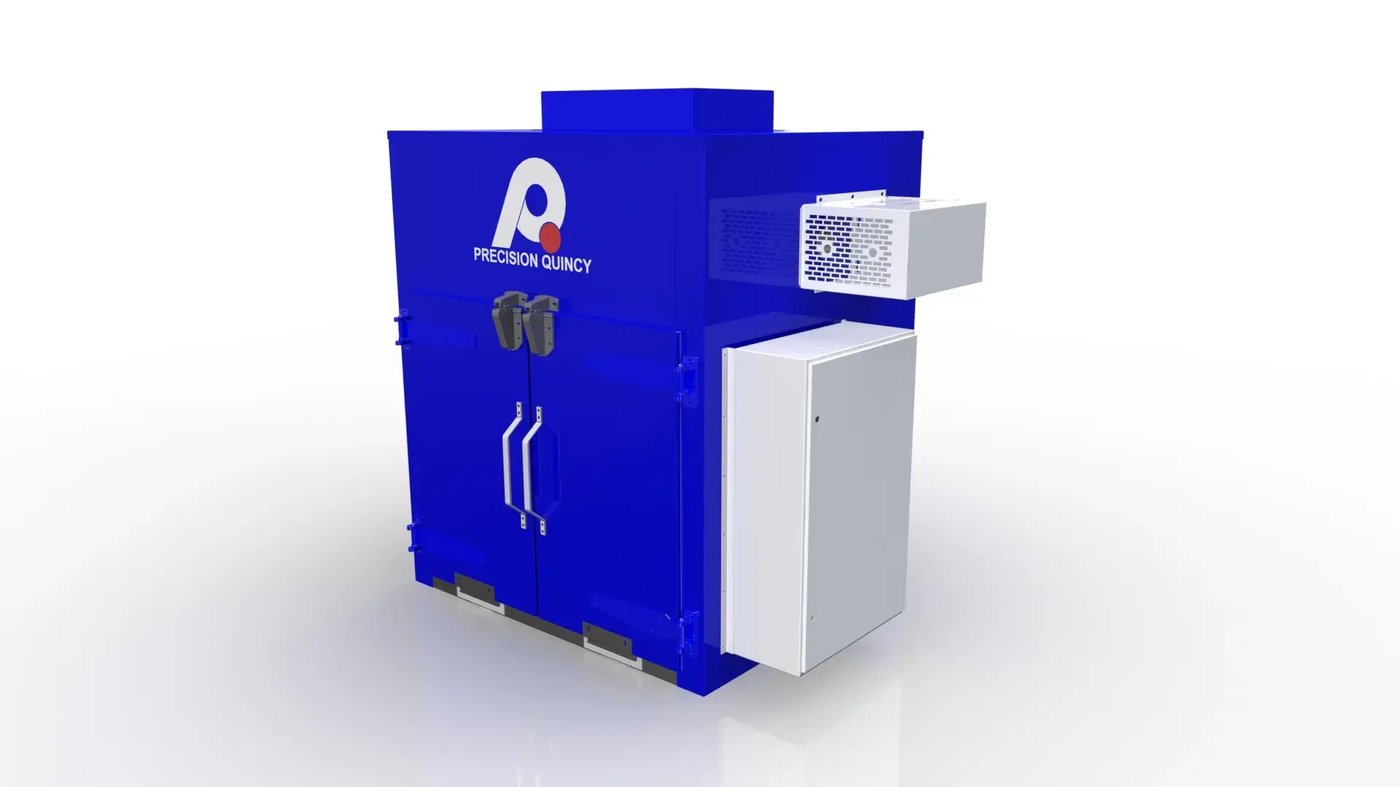

• Side/front GA view
• Work chamber view
