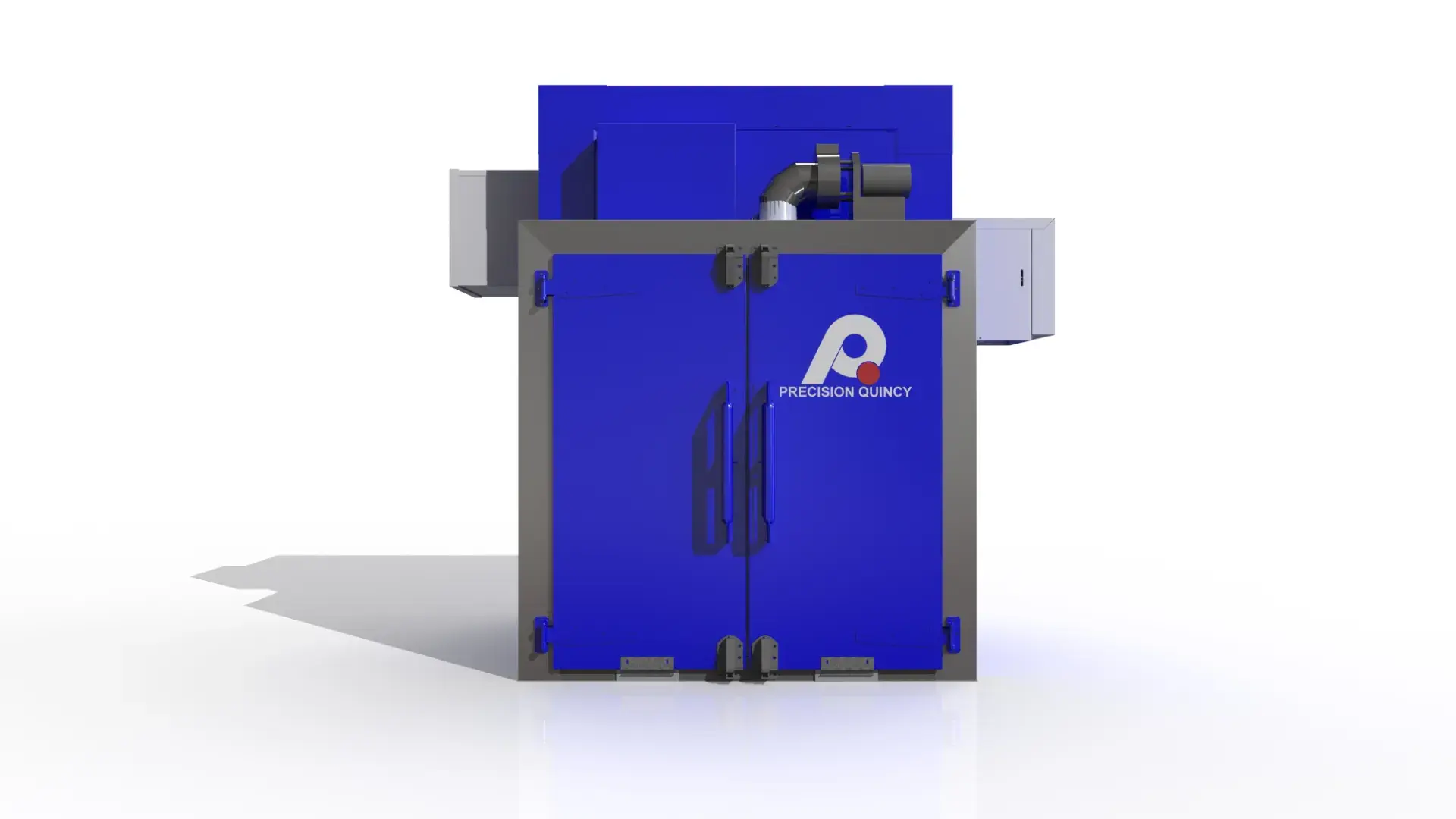

Electric Class A Truck Oven for Rubber Component Post-Curing

The project required a cart-loaded batch oven for the post-curing of molded rubber components in a manufacturing environment serving transportation and industrial markets. The process needed repeatable thermal performance across shelf-loaded batches and a chamber format that supported flexible product loading.

APPLICATION REQUIREMENT

• The oven had to support the post-curing of molded rubber components after primary forming.
• The process had to bring each batch through a controlled final heat cycle for consistent finished-part condition.
• The equipment had to support repeatable batch processing for rubber product families with varying shapes and sizes.

WORK CHAMBER / LOADING REQUIREMENT

• Required work chamber: 60 in W × 60 in D × 60 in H.
• The oven had to accept a multi-shelf cart load rather than a simple single-level load.
• The loading package had to support a 1,500 lb cart arrangement with twelve shelf positions.
• Product positioning had to allow air to move freely through the load during processing.

OPERATOR / ACCESS REQUIREMENT

• The oven had to allow front loading and unloading through two swing doors.
• The chamber floor had to support guided cart movement into and out of the work zone.
• The control package had to give operators direct control of the exhaust fan, recirculation fan, and heater banks.

QUALITY / CONTROL REQUIREMENT

• The process required repeatable temperature control at a 375°F operating basis.
• The oven had to maintain ±10°F work-area uniformity.
• The process required programmable ramp/soak control.
• The thermal cycle required recorded work-area temperature data for process visibility and repeatability.

SAFETY / ENVIRONMENTAL REQUIREMENT

• The oven had to be configured as a Class A process oven.
• The documented volatile basis required powered exhaust and purge sequencing.
• The process required interlocked operation so heat could run only when safe operating conditions were proven.

SITE / UTILITY REQUIREMENT

• Required electrical service: 460V / 3PH / 60Hz.
• Design elevation basis: 1,017 ft.

The project required a controlled moderate-temperature post-cure process based on forced convection, Class A ventilation, and programmable heat control.

TEMPERATURE REQUIREMENT

• Operating temperature basis: 375°F.
• Maximum temperature basis: 500°F.
• Required work-area uniformity: ±10°F.

AIRFLOW / HEAT-TRANSFER REQUIREMENT

• Airflow direction basis: full horizontal airflow.
• The process required forced-convection heating across a shelf-loaded cart.
• The airflow pattern had to move heated air evenly across the full work chamber and through multiple shelf levels.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat basis: 45 kW total.
• The process required staged electric heat input capable of supporting repeatable ramp/soak profiles.

VENTILATION REQUIREMENT

• The process required Class A exhaust and purge sequencing.
• Powered exhaust basis: 550 CFM.
• Maximum volatile load basis: 0.42 gal/batch o-xylene.
• The process required verified ventilation before heat could be enabled.

CONTROL / SEQUENCING REQUIREMENT

• Primary control basis: ramp/soak temperature control.
• The process required work-area temperature monitoring and recording.
• Minimum purge time basis: 3 minutes.
• Documented operating sequence:
• Start exhaust fan
• Start recirculation fan
• Complete purge
• Turn on heater bank(s)
• Run at temperature or programmed profile

COOLDOWN REQUIREMENT

• The process required continued fan operation during cooldown.
• The oven was designed to cool below 250°F before fan shutdown.

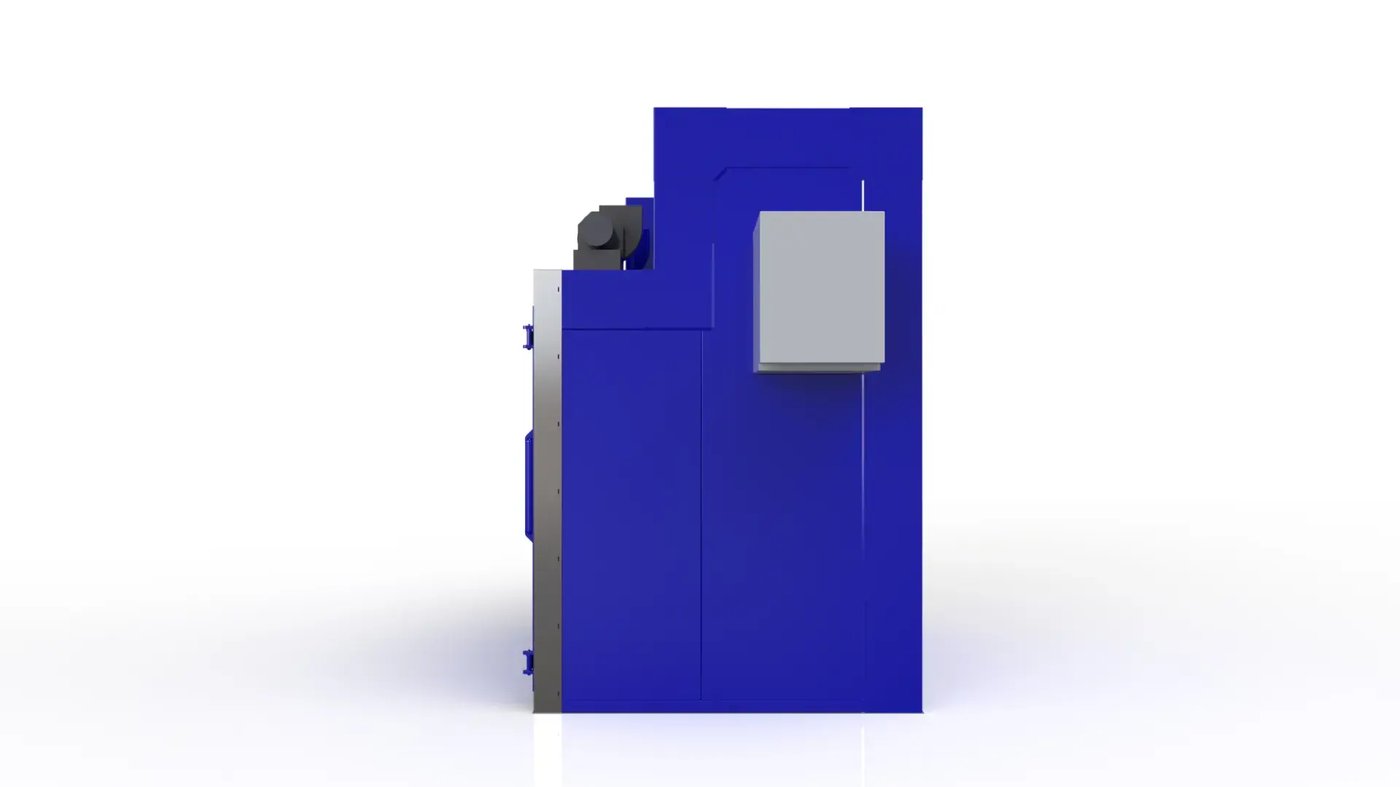

To satisfy those requirements, Precision Quincy configured the project as a 75-500 electric Class A truck oven with horizontal airflow, powered exhaust, guided cart loading, and interlocked controls.

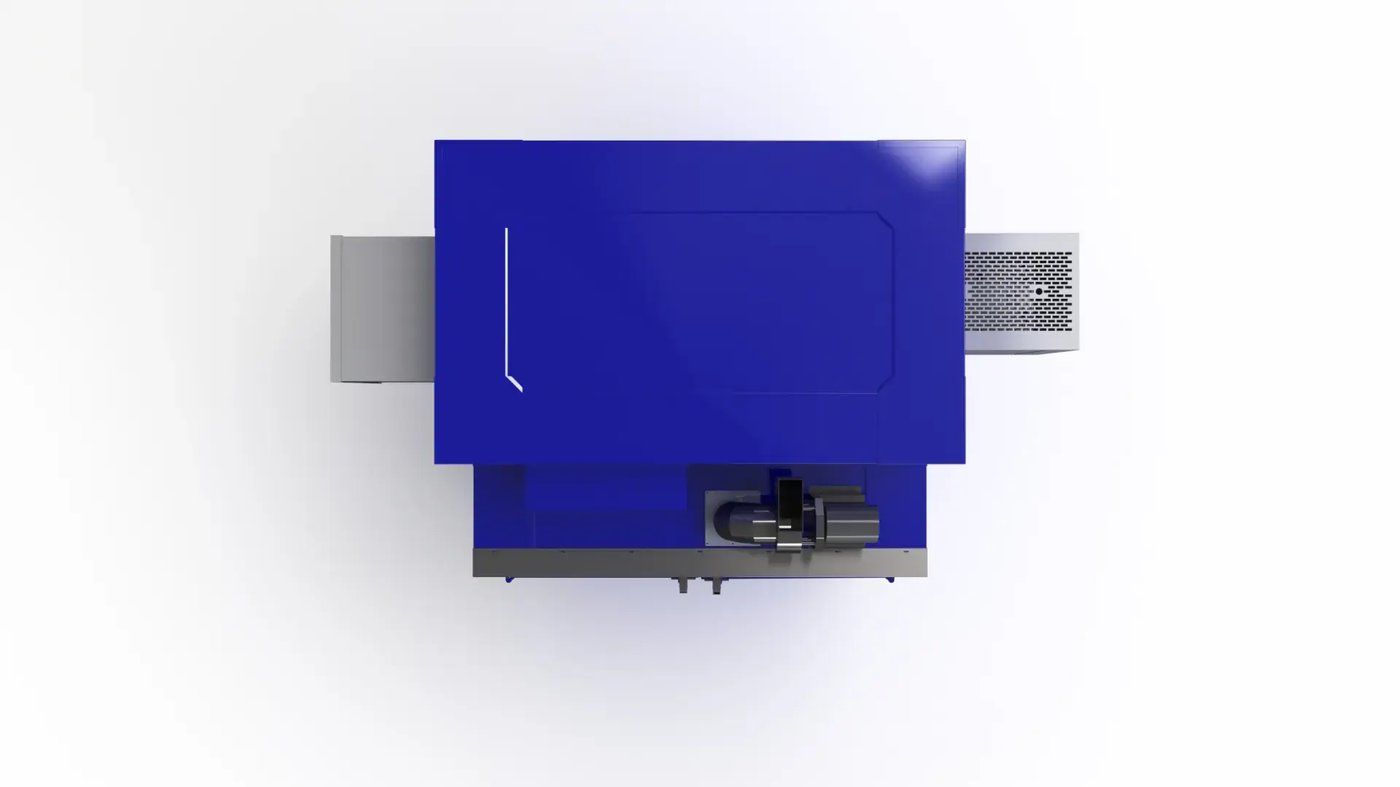

OVERALL CONCEPT

• One electric Class A truck oven
• Cart-loaded batch configuration
• 60 in × 60 in × 60 in work chamber
• Shelf-loaded airflow strategy built around full horizontal circulation

HEATING ARCHITECTURE

• Heat source: electric resistance heat
• Total installed heat: 45 kW
• Heating split into two heater banks
• 18 kW bank
• 27 kW bank
• Element basis: fifteen 3 kW heating elements
• Heater control through solid-state relays with backup contactors

AIRFLOW ARCHITECTURE

• Airflow pattern: full horizontal airflow
• Recirculation system based on a 13.5 in × 5 in FC fan assembly
• Recirculation performance: 2,496 CFM at 2 in. W.c.
• Recirculation fan motor: 3 HP
• Fresh-air damper integrated into the airflow path

EXHAUST / VENTILATION ARCHITECTURE

• Exhaust fan: PQ1 exhauster
• Exhaust performance: 550 CFM at 1 in. W.c.
• Exhaust fan motor: 0.75 HP
• Purge timer and airflow switches interlocked with the heat system

CHAMBER / CONSTRUCTION ARCHITECTURE

• Welded steel construction
• 4-inch insulated wall construction
• Insulation: 4 in of 6 lb mineral wool
• Interior: unpainted aluminized steel
• Exterior finish: PQ Blue
• Control enclosure finish: ANSI 61 gray
• Insulated floor with integrated cart guide tracks

DOOR / LOADING ARCHITECTURE

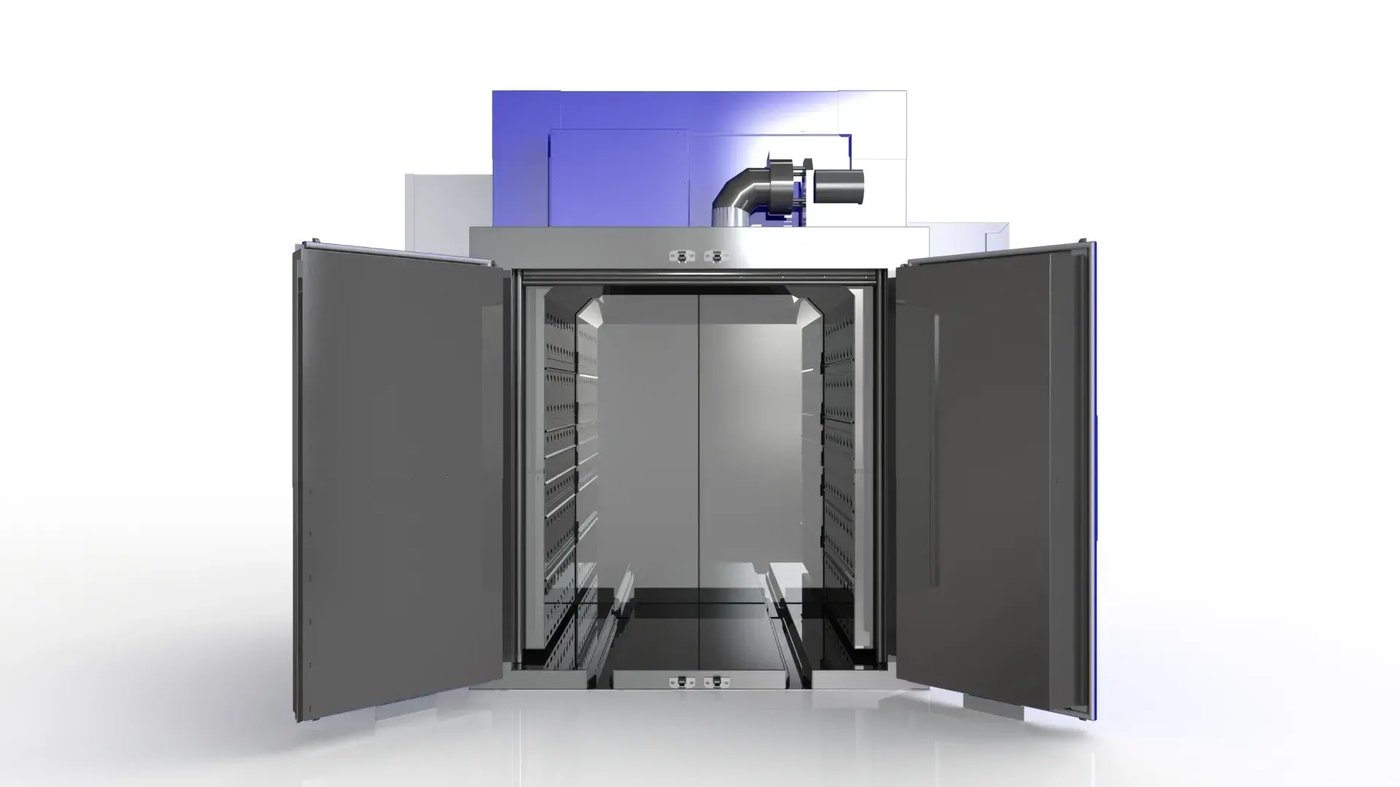

• Two swing doors
• 42 in cart-track center-to-center spacing
• Shelf cart rated for 1,500 lb total capacity
• Twelve shelf positions on the documented cart package

CONTROLS ARCHITECTURE

• Watlow F4T ramp/soak controller with non-encrypted data acquisition
• Gefran 650L work-area excess-temperature controller
• Type J thermocouples for work-area sensing
• NEMA 1 UL 508A open industrial control panel
• Operator controls for:
• Exhaust fan
• Recirculation fan
• Heater bank #1
• Heater bank #2
• Panel indication for:
• Purge complete
• Exhaust fan on
• Recirculation fan on
• Heater bank on

SAFETY ARCHITECTURE

• Applicable standards basis:
• NFPA 79
• NFPA 86
• UL 508A
• Safety logic includes:
• Exhaust airflow proving
• Recirculation airflow proving
• Timed purge before heat enable
• Excess-temperature shutdown
• Heat shutdown if safe operating conditions are not met
• Door hardware includes FM-approved pressure release latches
