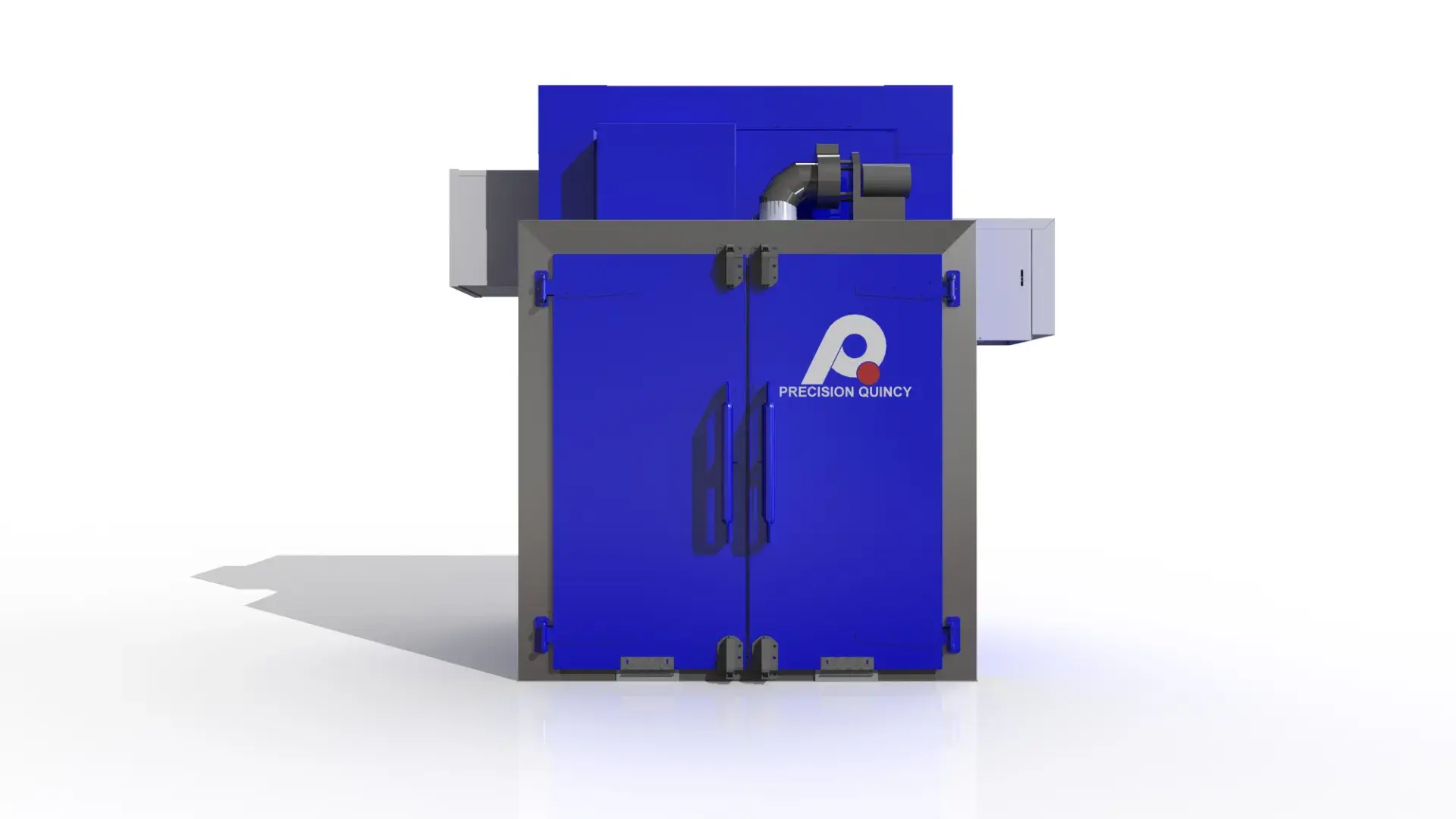

Electric Class A Truck Oven for Spool-Loaded Curing

The project required a spool-loaded batch oven suited for a precision manufacturing environment where repeatability, load control, and safe handling of cure-related off-gassing all mattered.

APPLICATION REQUIREMENT

• The oven supported batch curing in the customer automated manufacturing and contract manufacturing environment.
• The process had to handle reel-based materials or components associated with precision stamping, forming, welding, and assembly operations.
• The thermal platform needed to support consistent batch processing rather than a one-off lab or maintenance application.

LOAD AND HANDLING REQUIREMENT

• The oven had to process spool-based loads on a dedicated truck-style cart.
• The cart was designed to hold eight 36 in × 4 in spools.
• The work chamber had to provide enough width, depth, and height to accept the loaded cart while maintaining clear airflow paths through and around the product.
• The floor and track arrangement had to support stable cart movement into and out of the chamber.

OPERATOR AND ACCESS REQUIREMENT

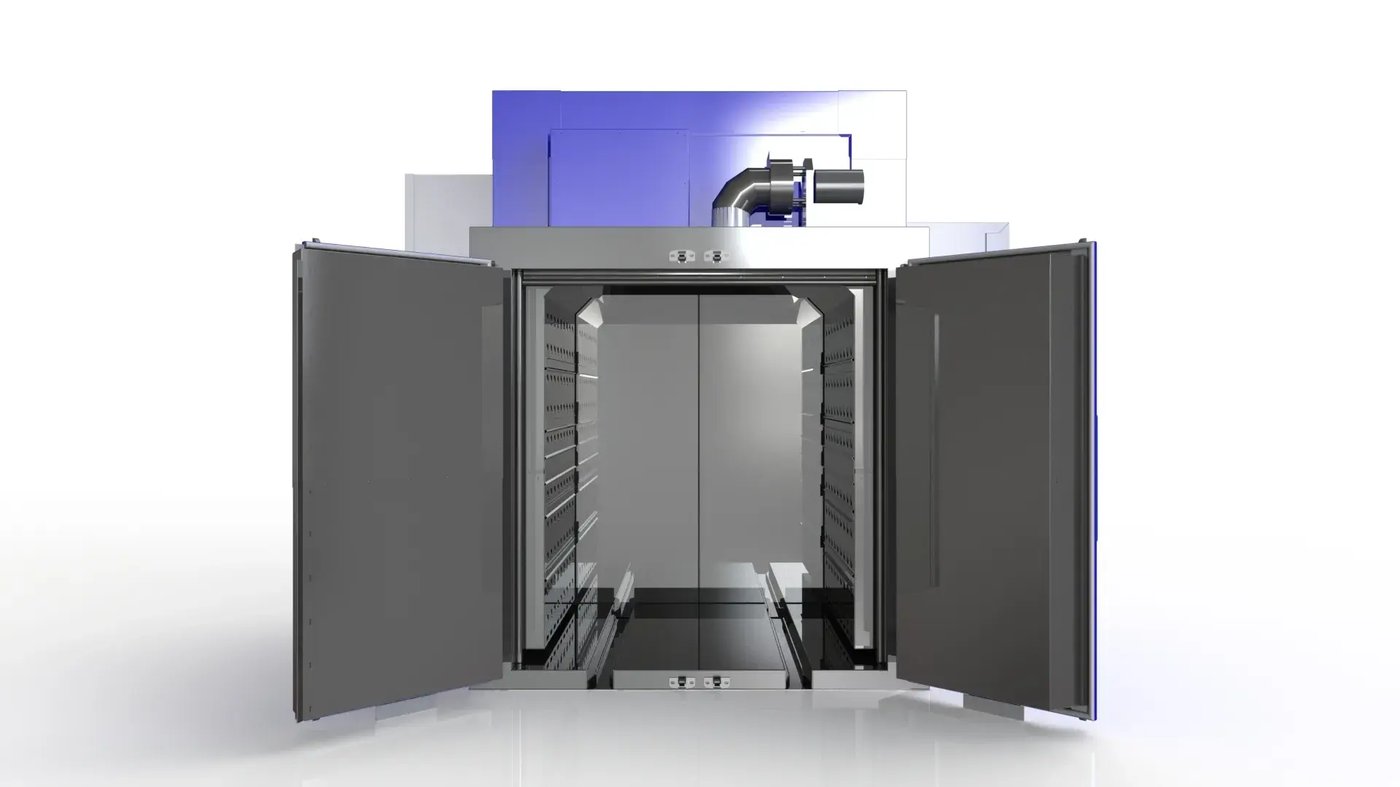

• The oven required front loading and unloading through two swing doors.
• The loading arrangement had to be simple, repeatable, and practical for large spool-based batches.
• The process required thermocouple access for product monitoring without disrupting normal oven use.

QUALITY AND CONTROL REQUIREMENT

• The customer needed repeatable curing performance at a defined operating temperature with controlled cycle execution.
• The system needed programmable ramp/soak capability for process flexibility.
• The process required multi-point thermocouple capability so product temperatures could be checked and recorded during cure cycles.
• The oven had to maintain work-area uniformity tight enough to support consistent results across the batch.

SAFETY AND ENVIRONMENTAL REQUIREMENT

• The process required a Class A oven configuration.
• The oven needed powered exhaust, purge sequencing, and airflow proving to support curing work with a volatile load basis.
• The system had to provide clear operator indication for normal running, setpoint status, cycle completion, and fault conditions.

UTILITY REQUIREMENT

• The oven was designed for 460V / 3PH / 60Hz electrical service.

The project was built around a controlled curing process that required stable temperature, cross-chamber airflow, Class A ventilation, and documented part-temperature monitoring.

TEMPERATURE REQUIREMENT

• Operating temperature basis: 260°F.
• Maximum temperature basis: 500°F.
• Required work-area uniformity: ±10°F.

AIRFLOW AND HEAT-TRANSFER REQUIREMENT

• Airflow pattern basis: full horizontal airflow.
• The process required forced convection across the full spool-loaded work zone.
• Based on the chamber cross-section in the airflow direction and the recirculation volume, the bulk chamber air velocity is approximately 90 FPM before product loading.
• Airflow had to remain effective with a loaded spool cart in the chamber, making load spacing and open flow paths important to the process.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat basis: 36 kW.
• Heating system basis: twelve 3 kW elements.
• Heat output had to support controlled warm-up, stable hold conditions, and repeatable curing cycles at the operating setpoint.

VENTILATION REQUIREMENT

• Oven classification basis: Class A.
• Powered exhaust basis: 550 CFM.
• Volatile load basis: 0.44 gal/batch o-xylene.
• Safe operation required purge completion and airflow proving before heat could be enabled.

PROCESS MONITORING REQUIREMENT

• The process required ramp/soak temperature control.
• The process also required work-temperature control plus part-temperature monitoring through multiple thermocouple inputs.
• Non-encrypted data acquisition allowed cure-cycle and thermocouple information to be recorded as part of the process workflow.

SEQUENCE AND COOLDOWN REQUIREMENT

• The operating sequence required exhaust fan start, recirculation fan start, purge completion, and then heater enable.
• Minimum purge time basis: 2 minutes.
• The oven required continued fan operation during cooldown.
• Fans remain in operation until oven temperature drops below 250°F.

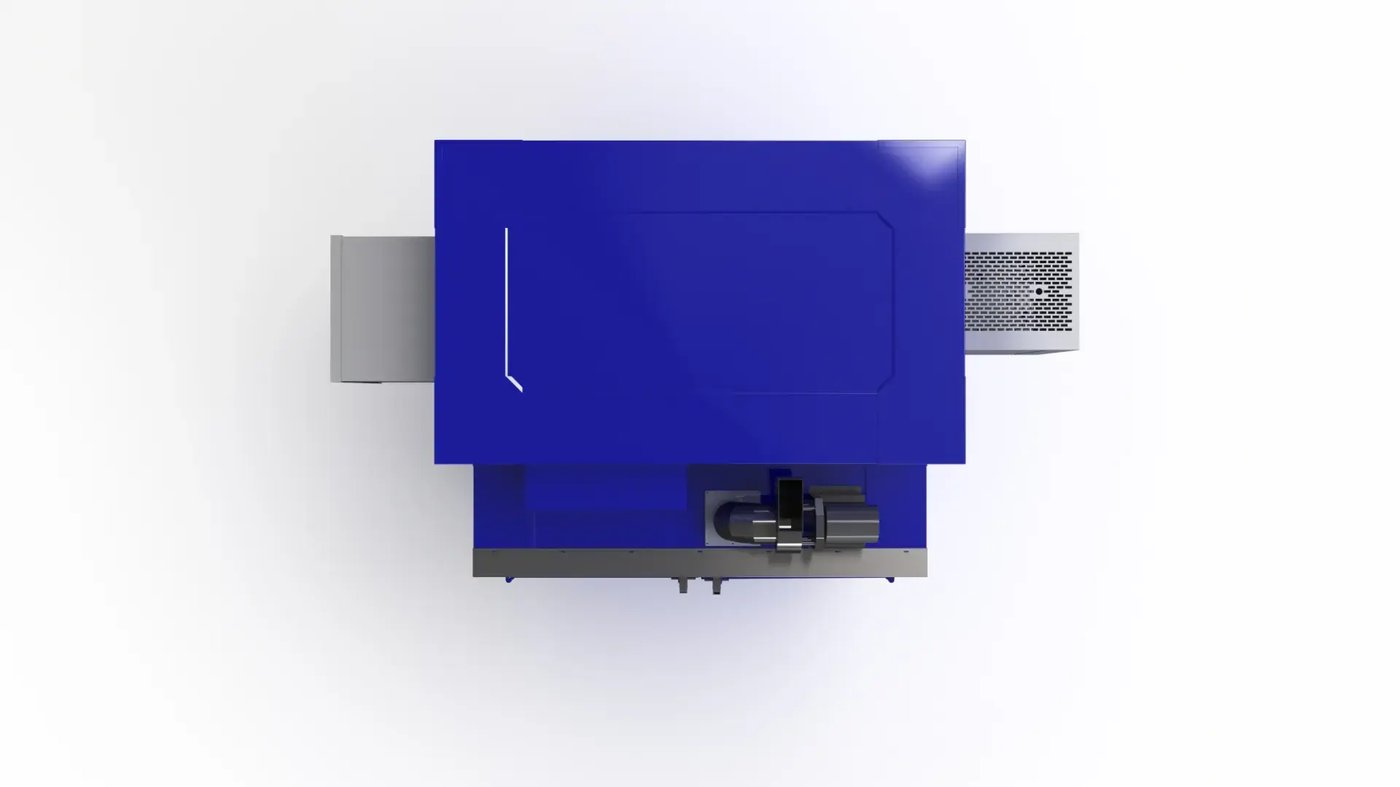

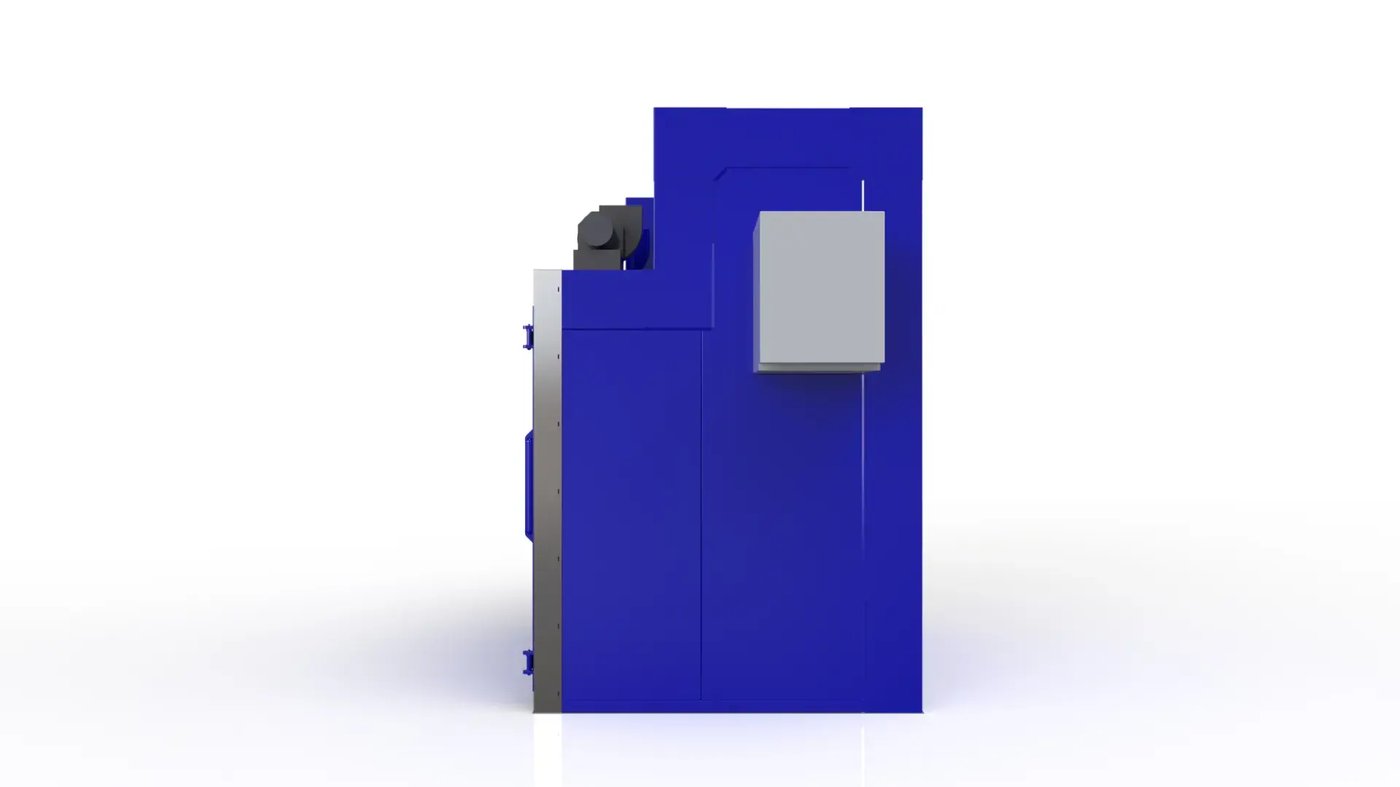

To satisfy those requirements, Precision Quincy configured the project as a 74-500 electric Class A truck oven with track-guided spool-cart loading, horizontal airflow, process-ready instrumentation, and fully interlocked safety controls.

OVERALL CONCEPT

• One electric Class A truck oven.
• Truck-style batch loading for spool-based work.
• Full horizontal airflow through a 48 in × 48 in × 60 in work chamber.

HEATING ARCHITECTURE

• Electric heating package rated at 36 kW.
• Heating system built around twelve 3 kW elements.
• Heater power controlled through solid-state relays with backup contactor protection.
• Roof-mounted heater package integrated with the recirculation assembly.

AIRFLOW ARCHITECTURE

• Full horizontal airflow pattern.
• Jan-Air 13.5 × 5 FC recirculation fan assembly delivering 1,800 CFM at 2 in. W.c.
• Fresh-air inlet integrated into the oven body.
• Airflow architecture arranged to move heated air across the loaded cart and return it through the recirculation circuit.

EXHAUST AND VENTILATION ARCHITECTURE

• PQ1 powered exhauster delivering 550 CFM at 1 in. W.c.
• Class A exhaust and purge arrangement integrated into the safety sequence.
• Exhaust and recirculation airflow switches verify safe operating conditions before heat is enabled.

CHAMBER AND SHELL ARCHITECTURE

• 4-inch-thick insulated wall construction.
• 4 inches of 6 lb mineral wool insulation.
• Aluminized steel interior.
• Traffic Gray exterior finish with gray control enclosure.
• Floor-mounted cart guide tracks with tapered entry.

LOAD-HANDLING ARCHITECTURE

• Dedicated cart sized for eight 36 in × 4 in spools.
• Cart constructed from unpainted mild steel structure and aluminized steel plating.
• Removable handle for practical movement and loading.
• Track-guided geometry sized to align the cart consistently within the chamber.

CONTROLS ARCHITECTURE

• Watlow F4T ramp/soak temperature controller with non-encrypted data acquisition.
• Four F4T thermocouple modules.
• Twelve thermocouple jack positions for part monitoring.
• 1.5 NPT wall port for routine thermocouple routing.
• Gefran 650L excess-temperature controller for high-limit protection.
• Tri-color visual/audio alarm for operating status and notifications.
• NEMA 1 UL508A open industrial control panel with panel-mount USB access.

SAFETY ARCHITECTURE

• Designed to NFPA 79, NFPA 86, and UL508A requirements.
• Safety chain with purge timer, airflow proving, excess-temperature shutdown, and heat disable on unsafe conditions.
• Exhaust fan, recirculation fan, and heater status clearly indicated at the control panel.
