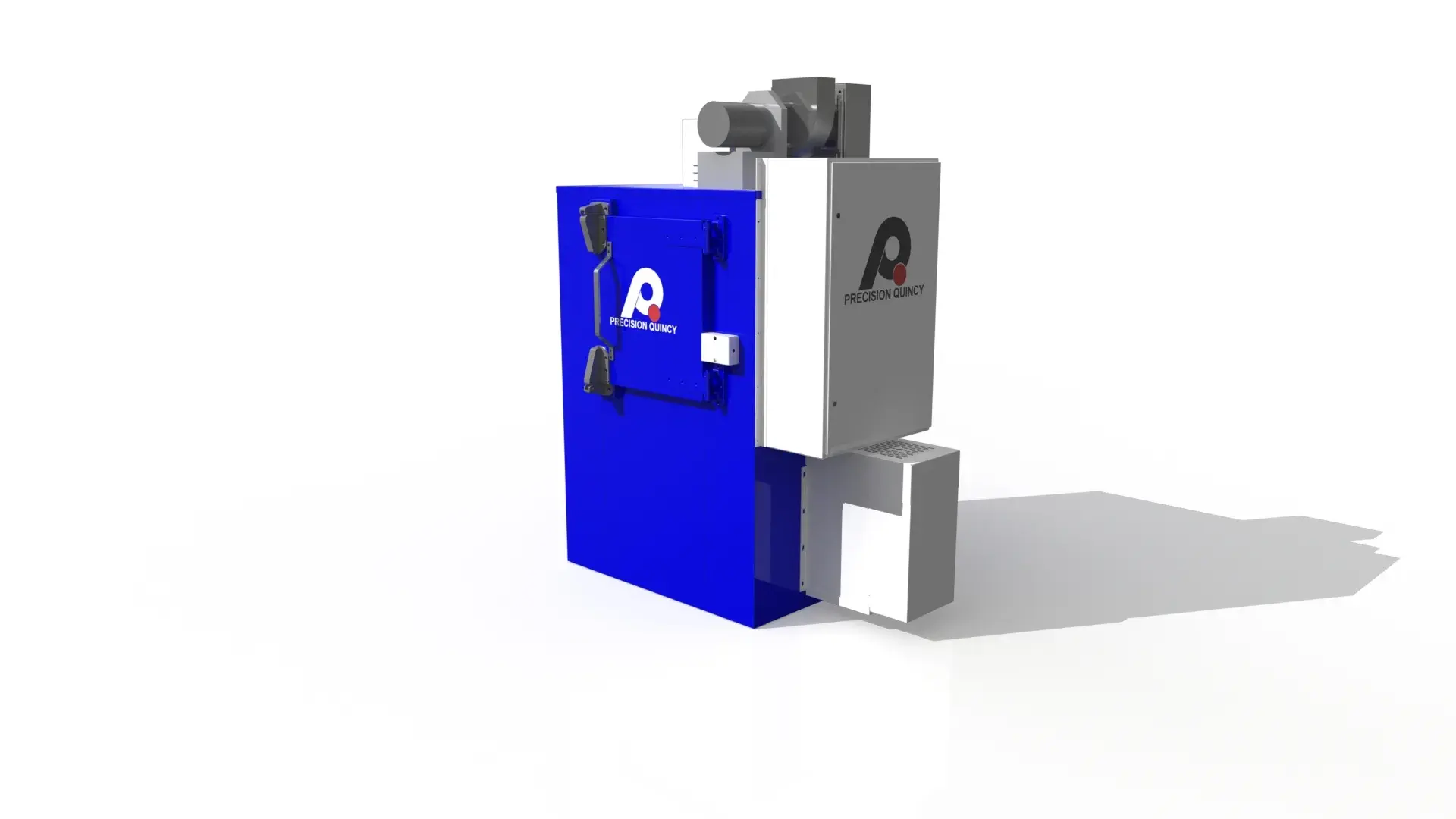

Electric Class B Cabinet Oven for High-Temperature Batch Processing of Precision Metal Components

The project required a compact, high-temperature batch oven for controlled thermal processing of smaller precision metal components in a shelf-loaded cabinet format. The required chamber size and shelf package indicate a process built around repeatable loading of smaller parts, subassemblies, tooling, or fixtures rather than large walk-in batches.

APPLICATION REQUIREMENT

• The customer required a batch oven for controlled high-temperature processing of precision metal work.
• The oven needed to support flexible batch loading across multiple shelf elevations.
• The chamber size and loading arrangement had to suit smaller components and variable load patterns within a compact cabinet footprint.

LOADING REQUIREMENT

• Required work chamber: 20 in W × 20 in D × 20 in H.
• The oven needed to include a shelf package with three 100 lb capacity shelves and one 250 lb capacity shelf.
• Shelf loads had to be evenly distributed.
• Product and fixture positioning had to be arranged so airflow through the chamber remained open and effective during use.

OPERATOR / ACCESS REQUIREMENT

• The process required front loading and unloading through a swing-door cabinet arrangement.
• The oven had to allow practical access to shelf-loaded work in a compact floor-mounted format.
• The control arrangement needed to keep operator interface and service access on the front face of the enclosure, reducing the need for side-access clearance.
• That front-access approach made it more practical to place ovens directly beside adjacent equipment or neighboring ovens when the installation layout required a tighter footprint.

QUALITY REQUIREMENT

• The customer needed repeatable batch processing for shelf-loaded metal work.
• The thermal cycle needed to be programmable so the oven could run controlled recipes rather than only simple fixed-temperature operation.
• The chamber needed to maintain the required process conditions across the usable work area.

SAFETY / PROCESS CLASSIFICATION REQUIREMENT

• The process basis required Class B oven operation.
• No VOCs were allowed in the process load.
• The project therefore required a high-temperature thermal process without solvent-handling architecture.

SITE / UTILITY REQUIREMENT

• Required electrical service: 460V / 3PH / 60Hz.
• Design elevation basis: less than 1,000 ft.

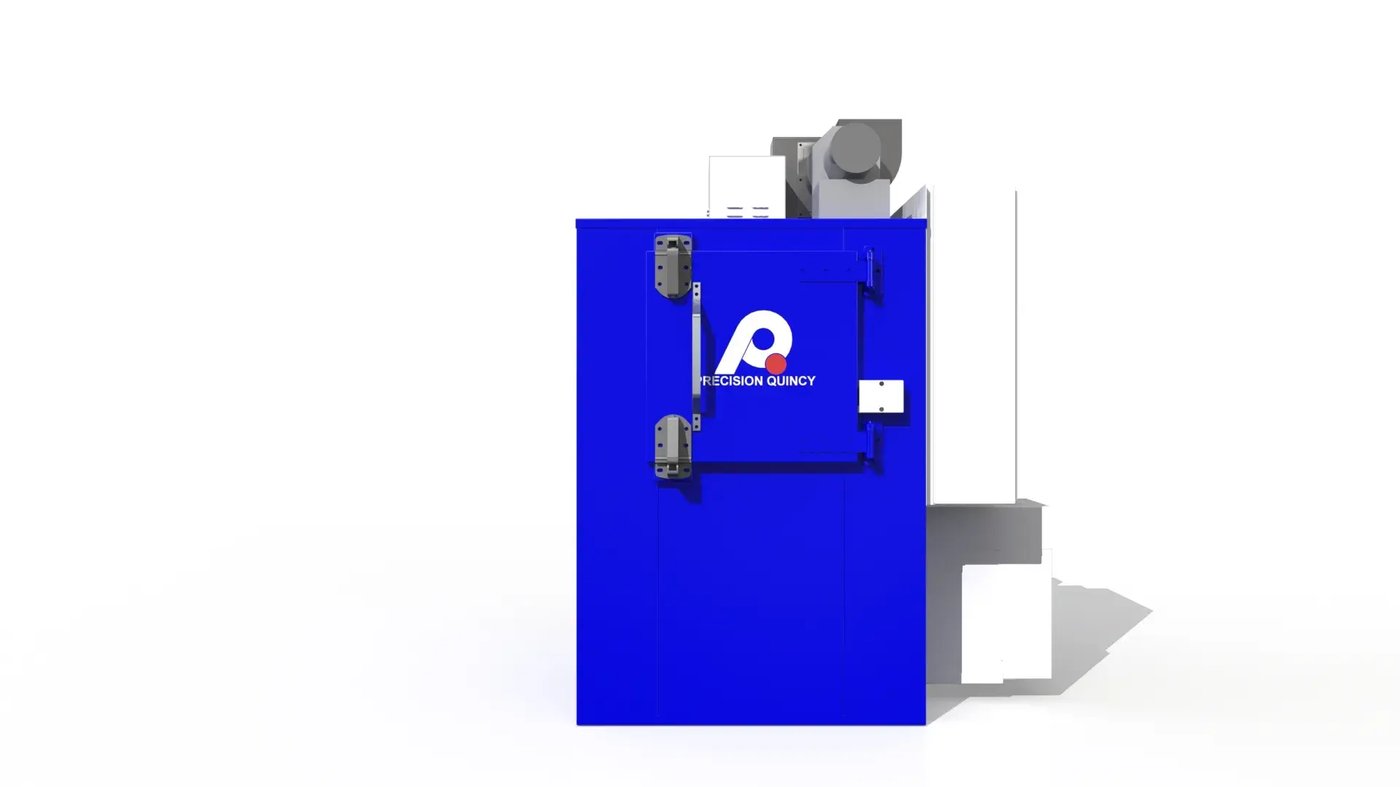

• [Front elevation]
• [Door and chamber section]

The project required a high-temperature forced-convection batch process for shelf-loaded metal work in a compact cabinet chamber.

TEMPERATURE REQUIREMENT

• Operating temperature basis: 800°F to 850°F.
• Maximum temperature basis: 850°F.
• Required work-zone uniformity: ±10°F.

AIRFLOW / HEAT-TRANSFER REQUIREMENT

• Airflow direction basis: full horizontal airflow.
• The thermal process required forced convection across the work chamber to drive repeatable heat transfer through shelf-loaded parts.
• The airflow pattern had to support even heating across the usable chamber volume while maintaining the required temperature performance.

HEAT-INPUT REQUIREMENT

• Heat source: electric resistance heat.
• Installed heat basis: 18 kW total.
• The thermal system had to support rapid heat-up to the operating range and stable control through the full process band.

CONTROL REQUIREMENT

• Primary temperature control basis: programmable ramp/soak control.
• The process required controlled temperature profiling rather than simple manual heat input only.
• Work-area temperature sensing and excess-temperature protection were both required.

PROCESS CLASSIFICATION REQUIREMENT

• The thermal process basis was Class B.
• No VOC loading was allowed, so the process did not require powered solvent-handling exhaust architecture.

SHUTDOWN / COOLDOWN REQUIREMENT

• Heat had to be turned off before final shutdown.
• Recirculation airflow needed to remain in operation during cooldown.
• The documented operating sequence required the oven to cool to below 250°F before shutting off fans.
• [GA airflow view]
• [Wiring diagram sequence area]

To satisfy those requirements, Precision Quincy configured the project as a C8-202020-B electric Class B cabinet oven with a compact insulated shell, horizontal airflow, side-mounted controls, and programmable high-temperature electric heat.

OVERALL CONCEPT

• One electric Class B cabinet oven.
• Compact floor-mounted batch configuration.
• Shelf-loaded chamber sized for smaller high-temperature batch work.

HEATING ARCHITECTURE

• Heat source: electric resistance heat.
• Heating system: 3 kW heating element array delivering 18 kW total.
• Heat output was controlled through the temperature-control system using solid-state relays and backup contactor protection.

AIRFLOW ARCHITECTURE

• Airflow pattern: full horizontal airflow.
• Recirculation fan: Jan-Air 12.19 × 4 RB fan.
• Recirculation performance: 2,000 CFM at 2 in. W.c.
• Recirculation fan motor: 1 HP.

EXHAUST ARCHITECTURE

• Exhaust style: non-powered exhaust.
• Exhaust outlet size: 7 in × 7 in.

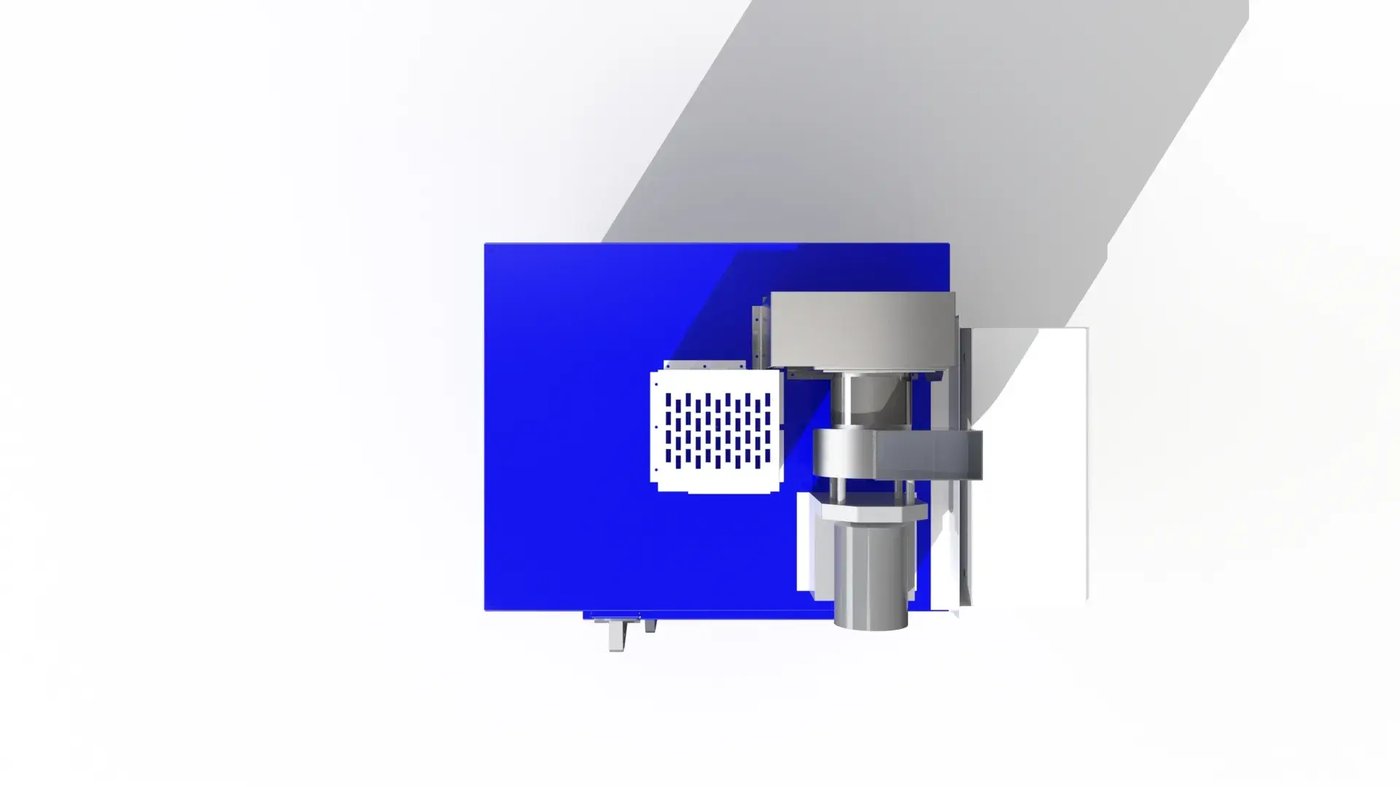

• Roof exhaust location and chamber circulation path were arranged around the compact cabinet shell.

CHAMBER / SHELL ARCHITECTURE

• Internal work chamber: 20 in W × 20 in D × 20 in H.
• Wall system thickness: 7 in.
• Insulation package: 6 in of 6 lb mineral wool plus 1 in of 8 lb Superwool.
• Interior material: unpainted aluminized steel.
• Exterior finish: PQ gray (RAL 7042).
• Control enclosure finish: PQ gray (RAL 7042).

LOADING ARCHITECTURE

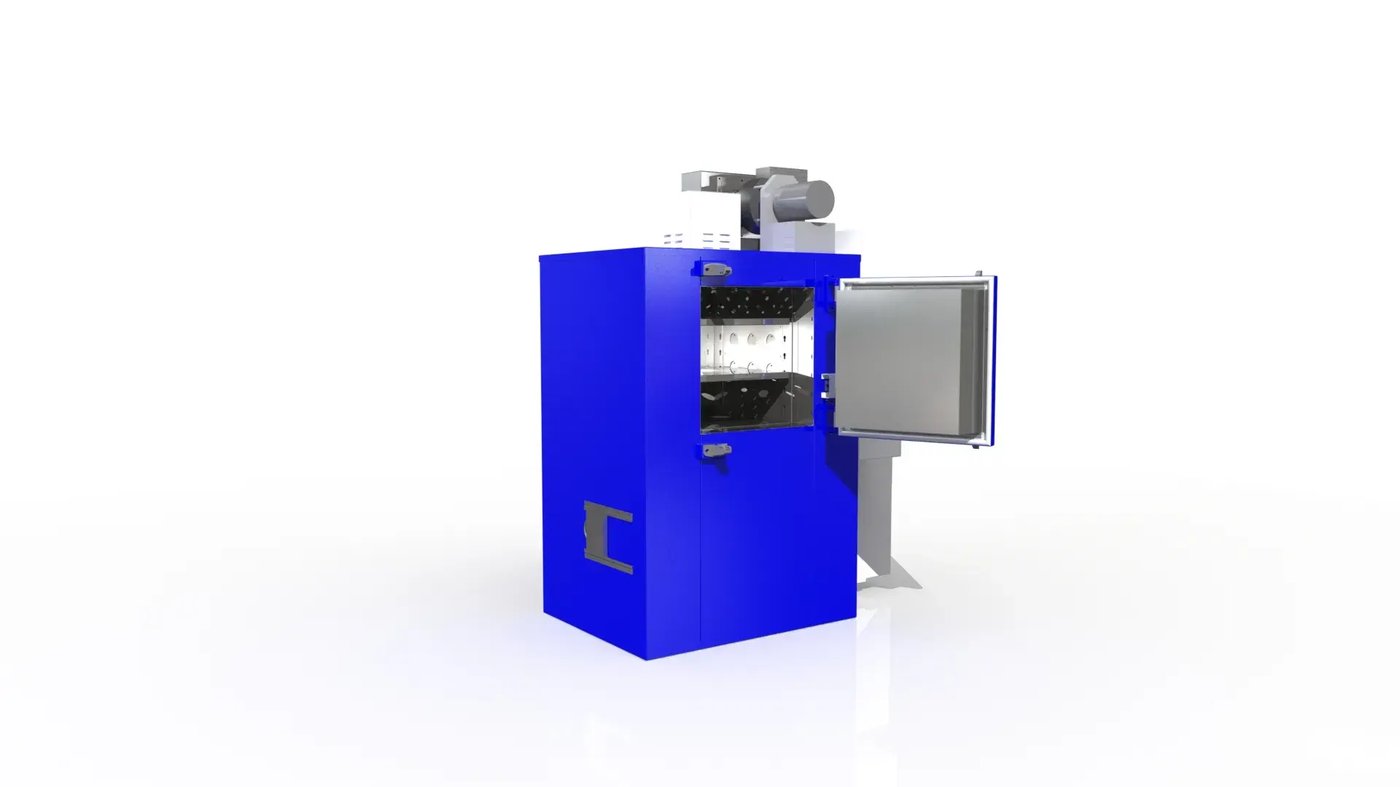

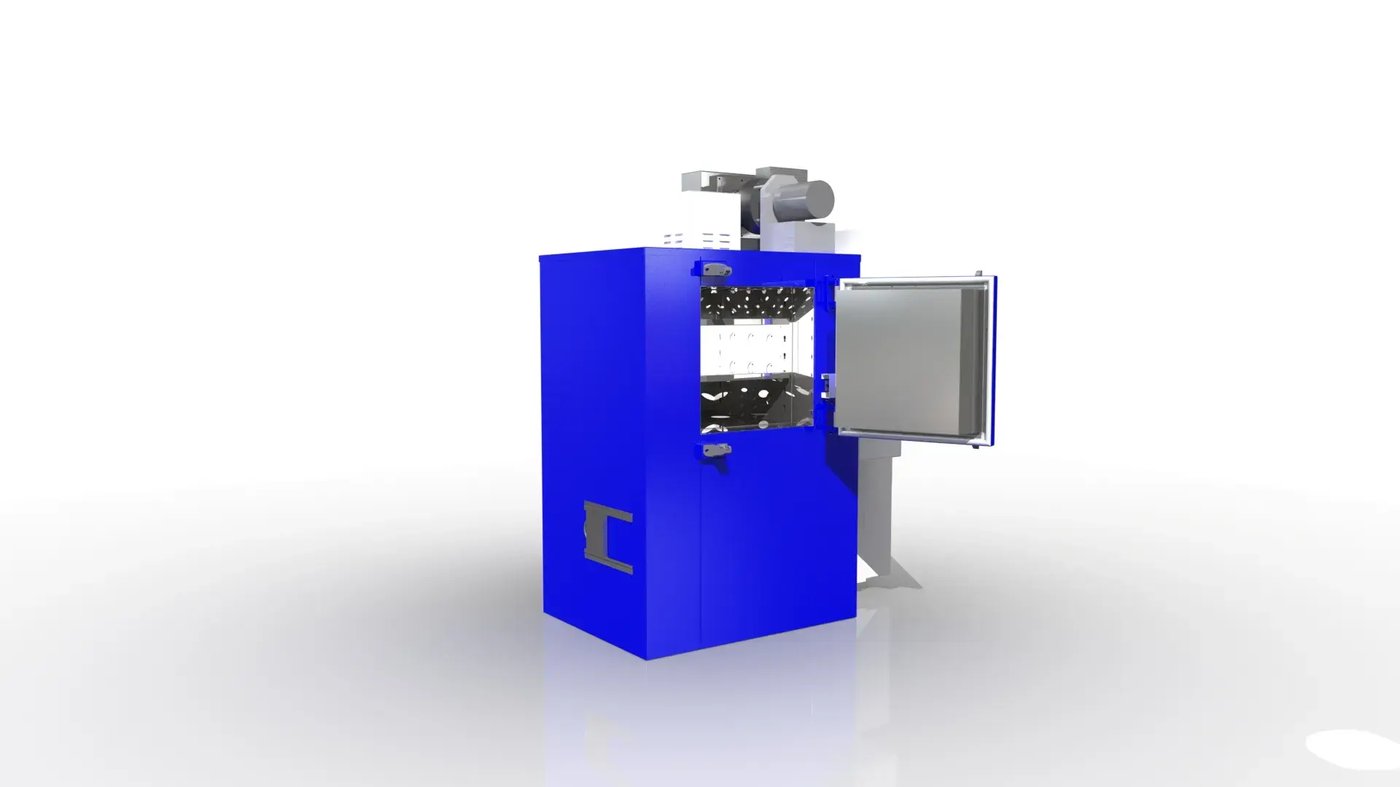

• Front access through double swing doors.
• Shelf package included three 100 lb shelves and one 250 lb shelf.
• The loading arrangement supported flexible shelf placement and evenly distributed loads.

CONTROLS ARCHITECTURE

• Primary temperature controller: Watlow F4T ramp/soak controller.
• Excess-temperature controller: Gefran 650L.
• Thermocouple type: Type J.
• Control enclosure: NEMA 1.
• Enclosure listing basis: UL 508A open industrial control panel.
• Panel hardware included a disconnect, operator switches, indicators, enclosure cooling fan, and panel-mount USB port.
• The control cabinet arrangement kept operator and service access on the front face of the unit, which improved accessibility while reducing the side-clearance requirement for installation.
• That layout made side-by-side placement of multiple ovens more achievable in space-constrained production areas.

SAFETY ARCHITECTURE

• Applicable standards basis: NFPA 79, NFPA 86, and UL 508A.
• Safety logic included recirculation airflow proving, excess-temperature protection, and heat shutdown if safe operating conditions were not met.
• Documented operating sequence required fan operation before heat enable and continued airflow during cooldown.
• [Enclosure layout]
• [Front / side GA]
• [Chamber / airflow section]
